Observatory Parameters - South Site#
Parameter |
Value |
Parameter Version |
|---|---|---|
array_layouts |
2.0.0 |
|
array_triggers |
1.0.0 |
|
array_window |
1000.0 ns |
1.0.0 |
atmospheric_profile |
1.0.0 |
|
atmospheric_transmission |
1.0.0 |
|
corsika_observation_level |
2147.0 m |
1.0.0 |
epsg_code |
32719 |
1.0.0 |
geomag_horizontal |
20.552 uT |
1.0.0 |
geomag_rotation |
-4.533 deg |
2.0.0 |
geomag_vertical |
-9.367 uT |
1.0.0 |
nsb_reference_spectrum |
1.0.0 |
|
nsb_reference_value |
0.24 1 / (ns sr cm2) |
1.0.0 |
nsb_scaling_factor |
1.0 |
1.0.0 |
reference_point_altitude |
2162.0 m |
2.0.0 |
reference_point_latitude |
-24.683429 deg |
2.0.0 |
reference_point_longitude |
-70.316345 deg |
2.0.0 |
reference_point_utm_east |
366822.0 m |
1.0.0 |
reference_point_utm_north |
7269466.02 m |
1.0.0 |
Array Layouts#

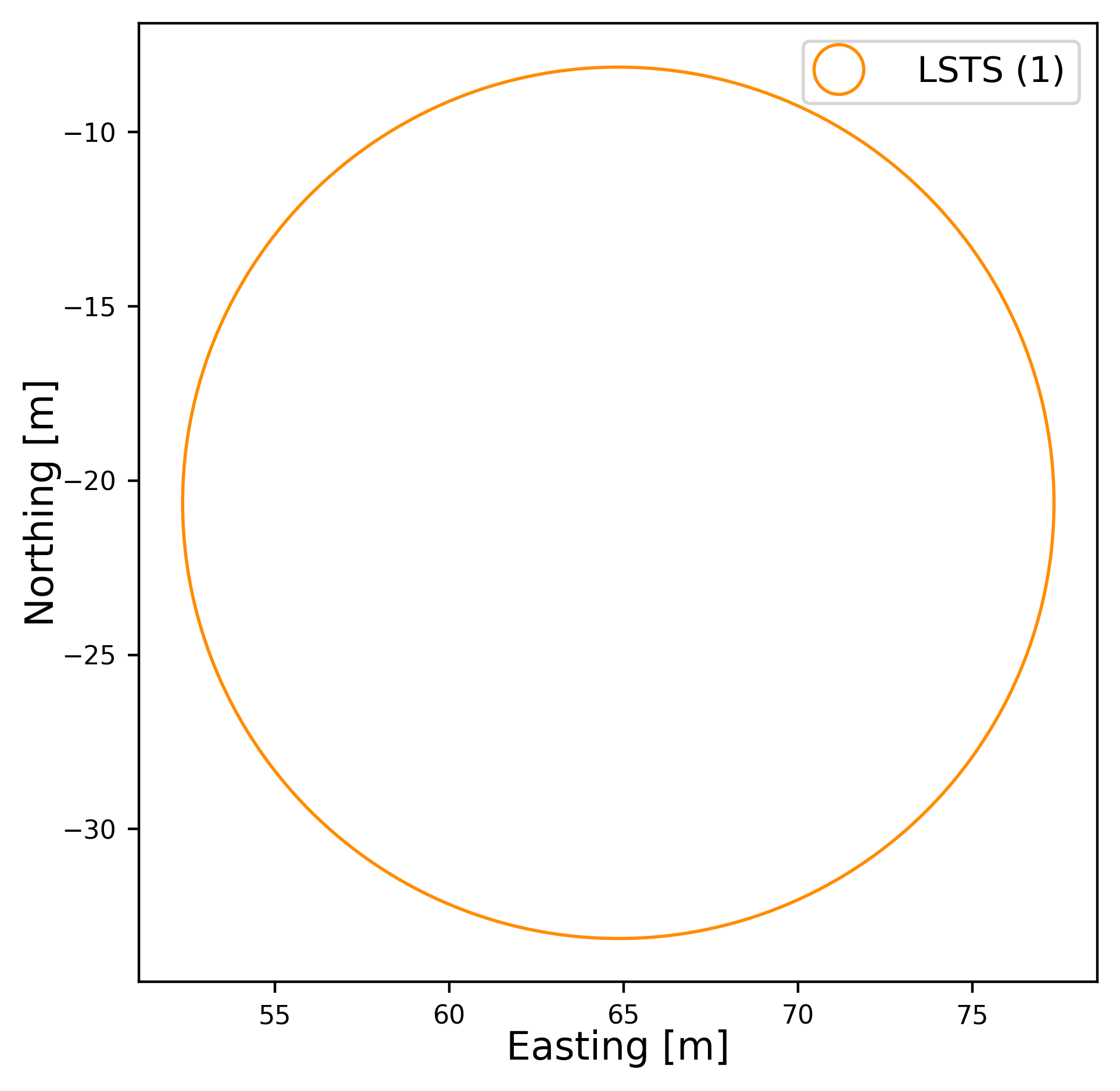

1lst#
Element |
|---|

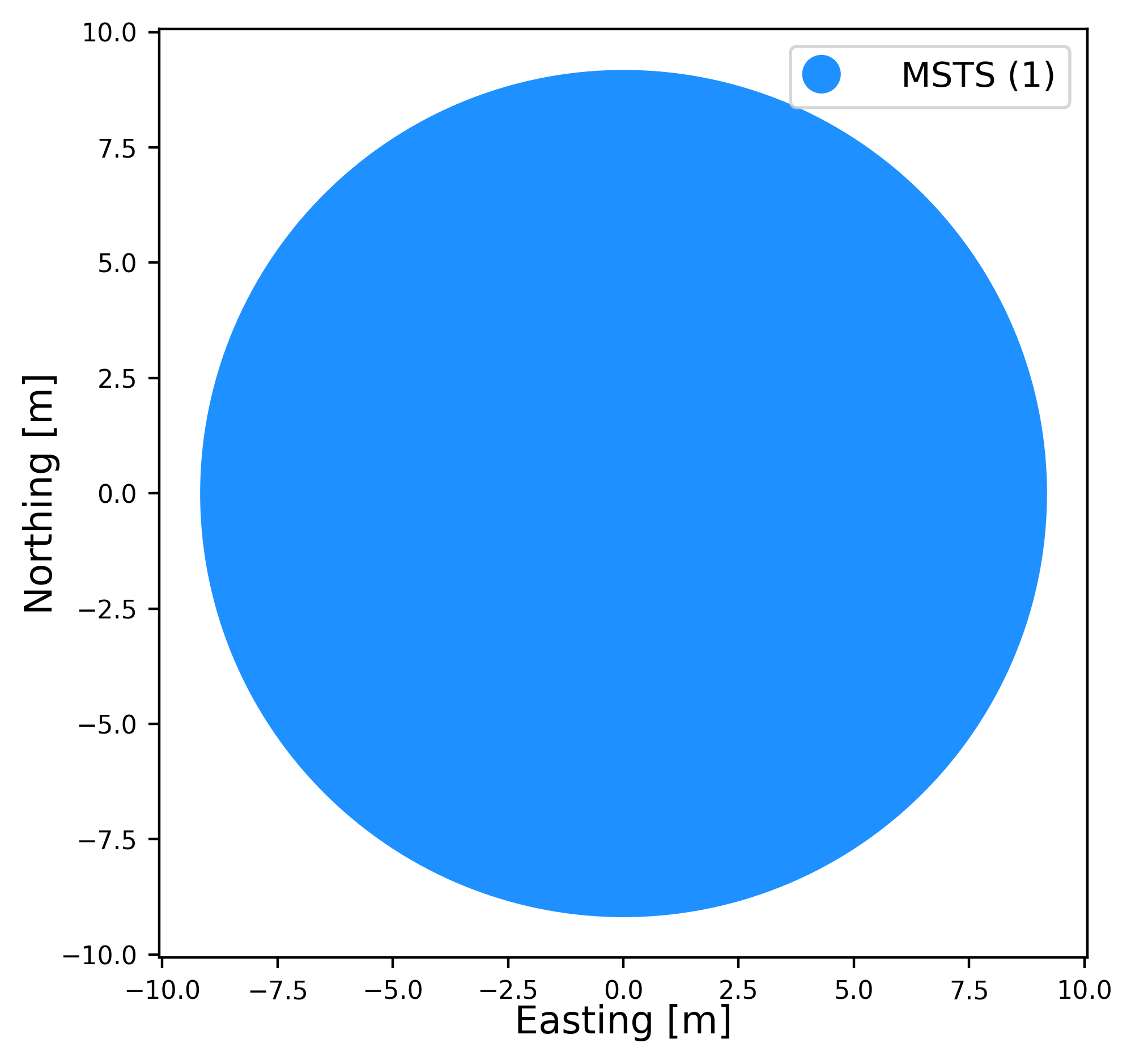

1mst#
Element |
|---|

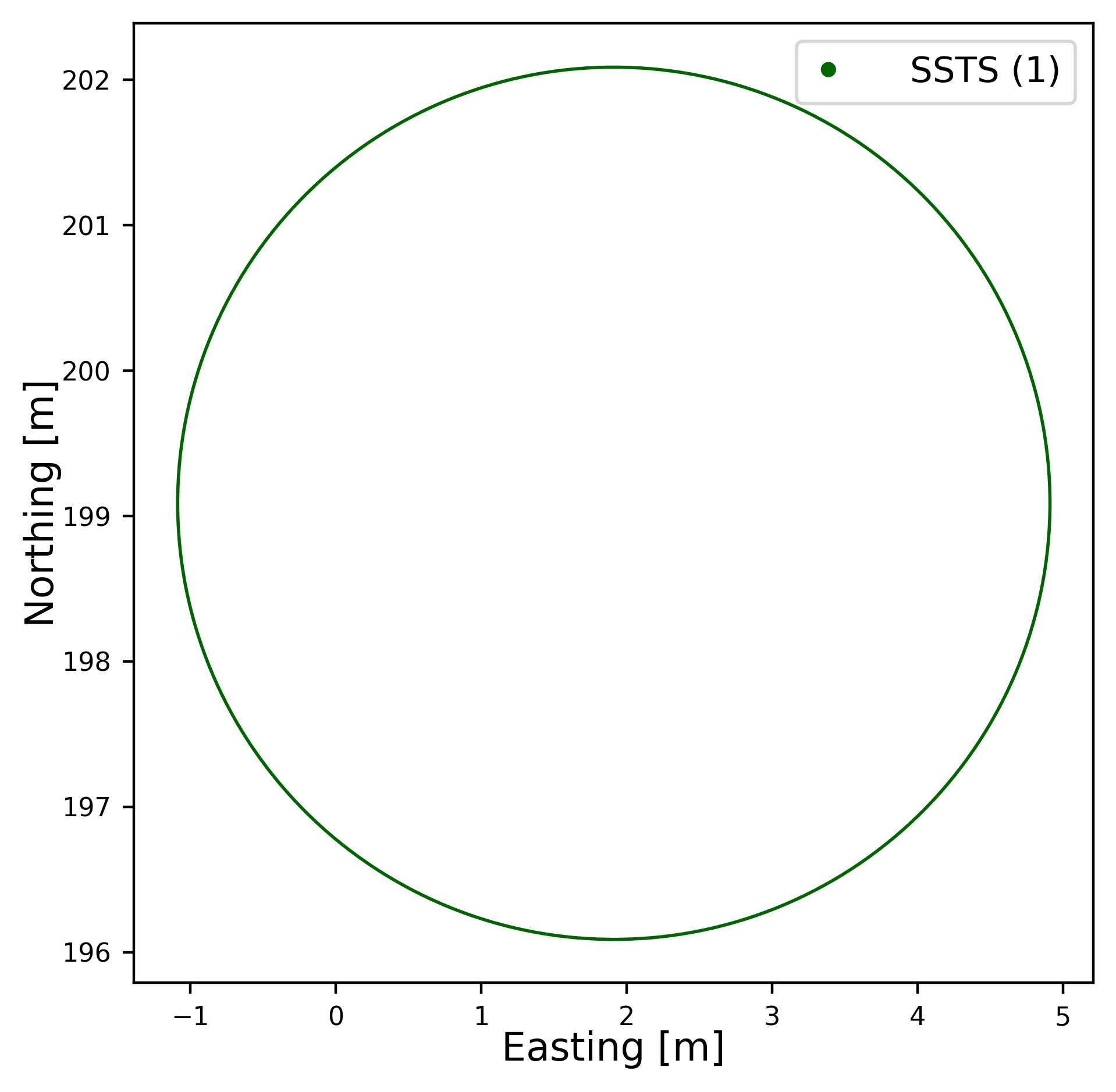

1sst#
Element |
|---|

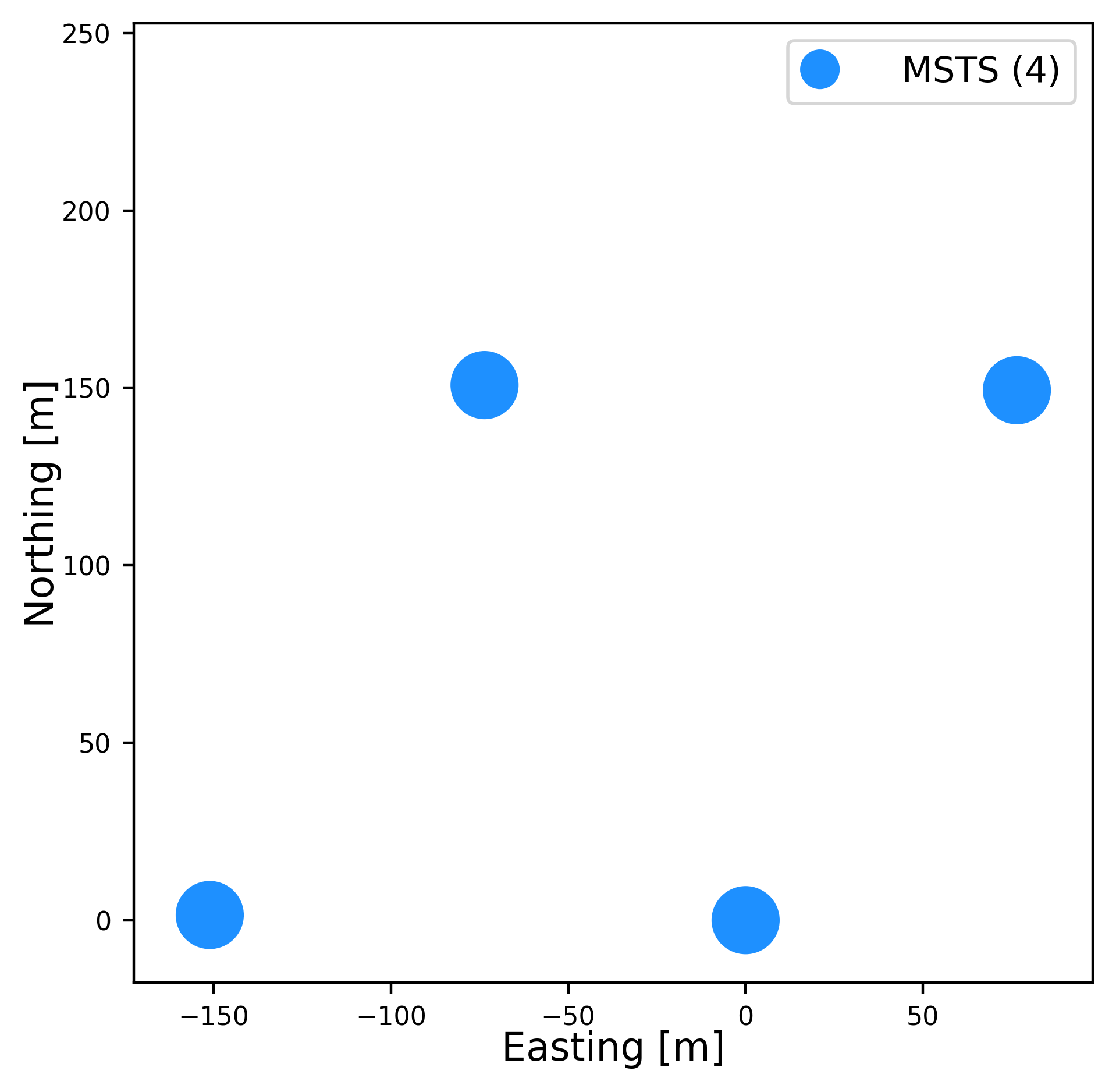

4mst#

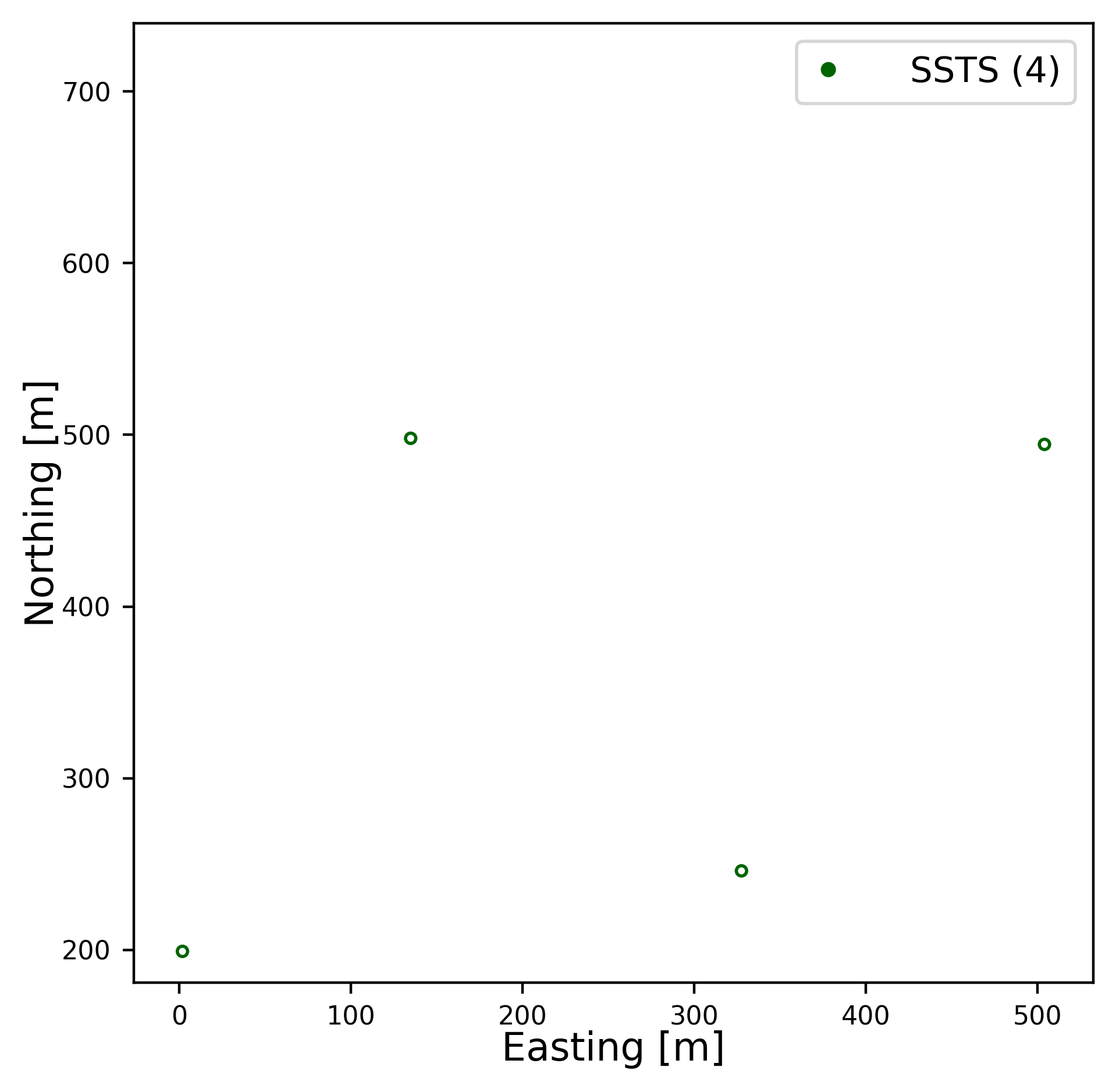

4sst#

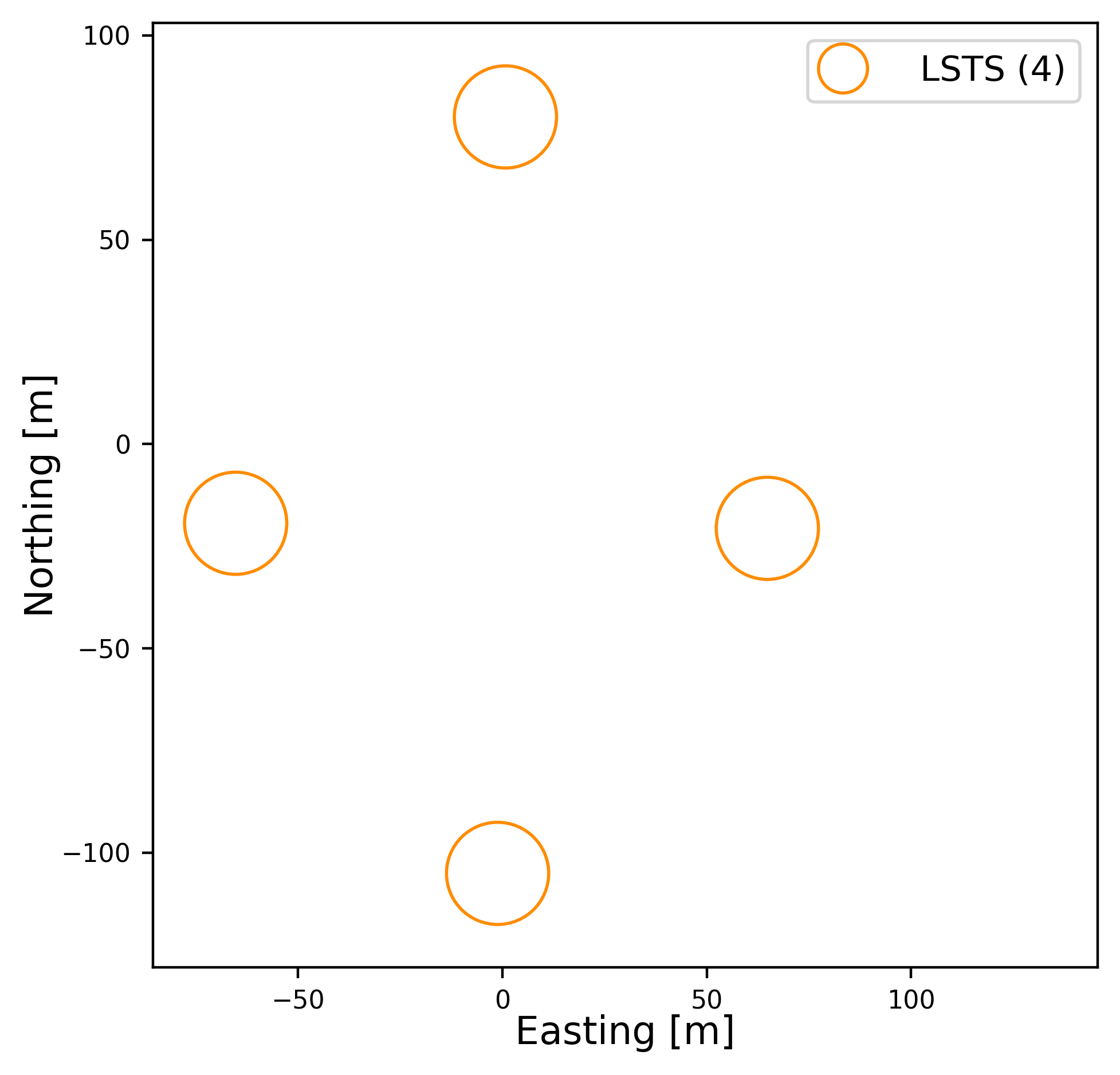

subsystem_lsts#

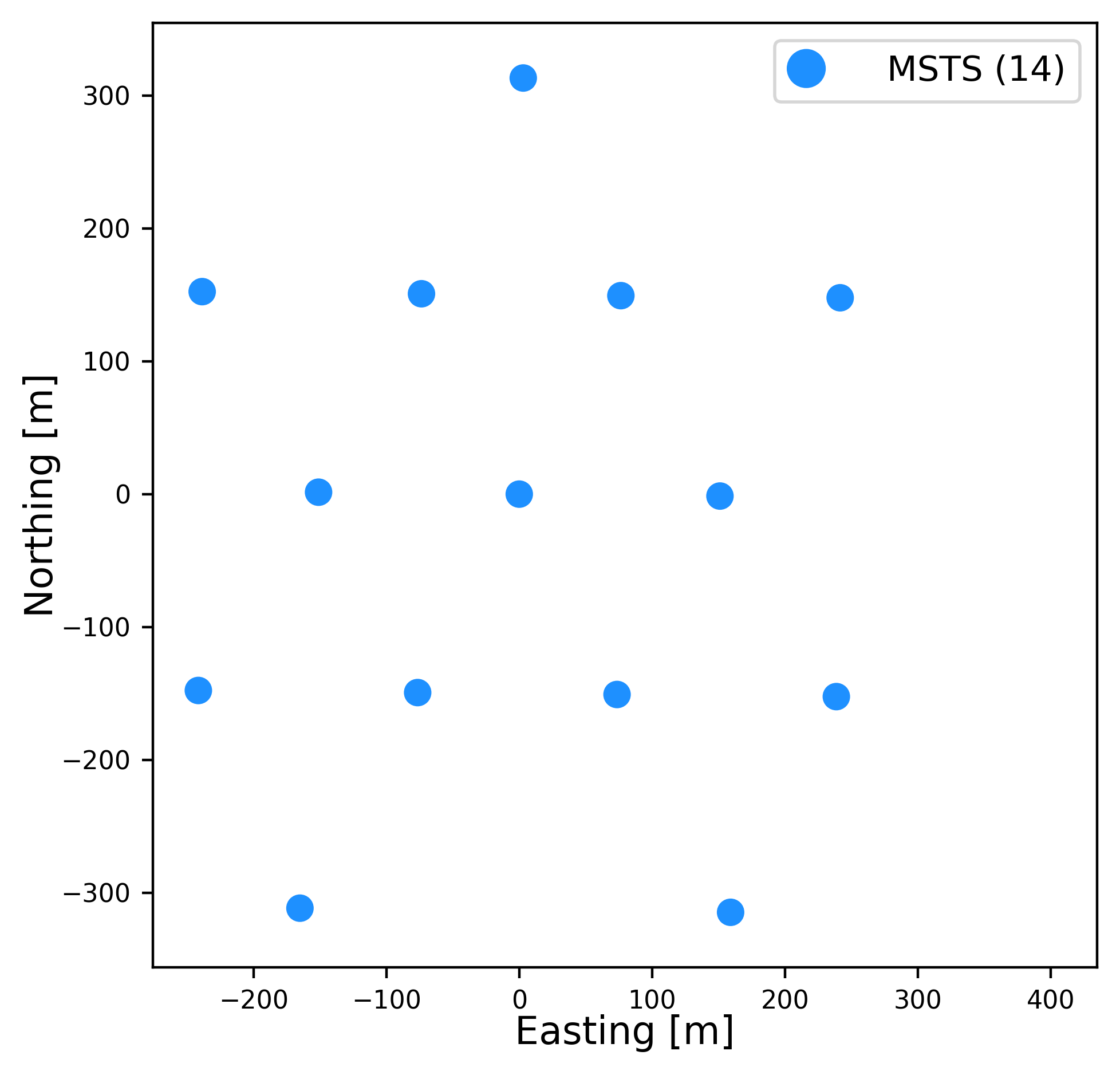

subsystem_msts#
Element |
|---|

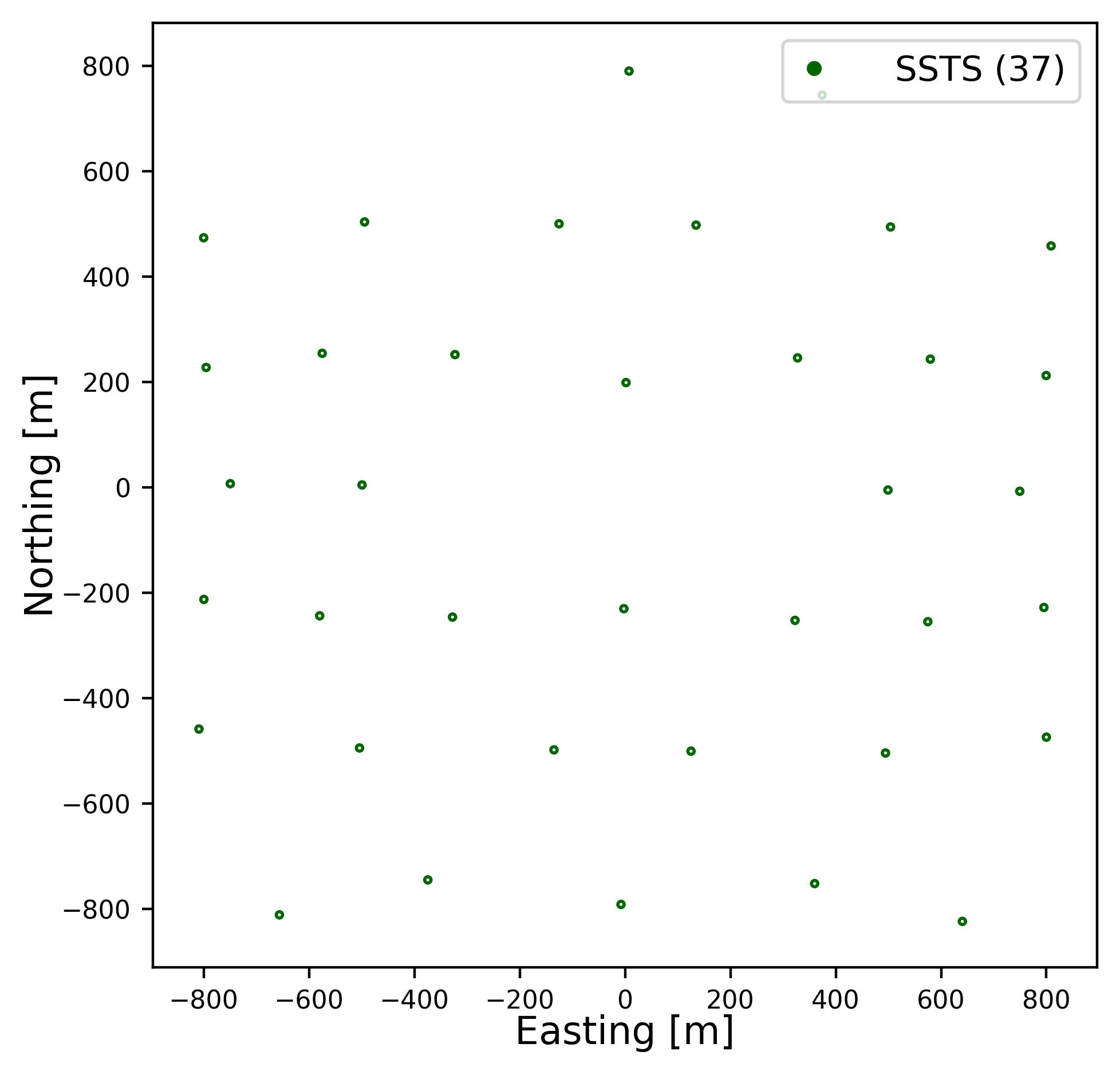

subsystem_ssts#
Element |
|---|

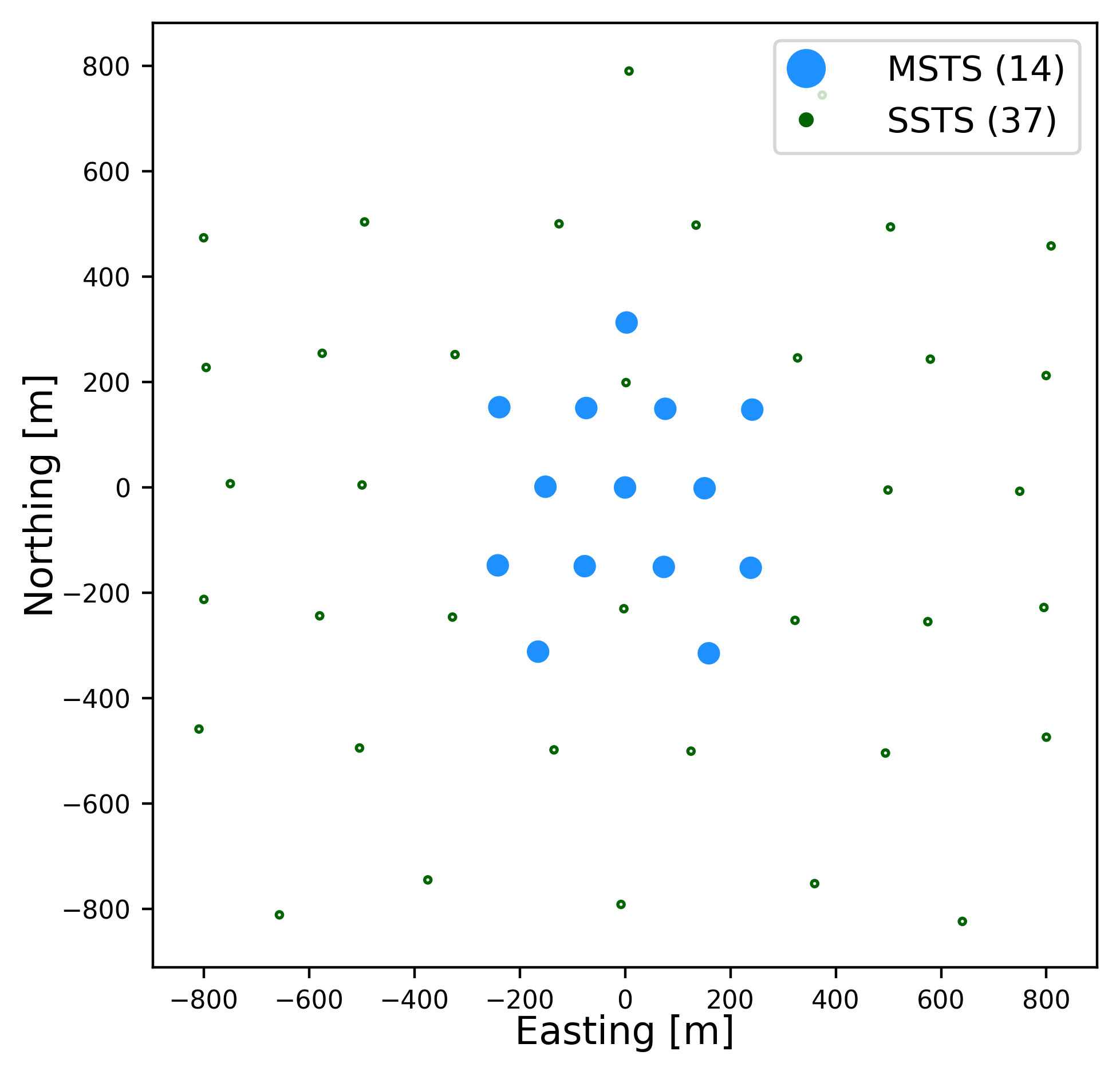

alpha#
Element |
|---|

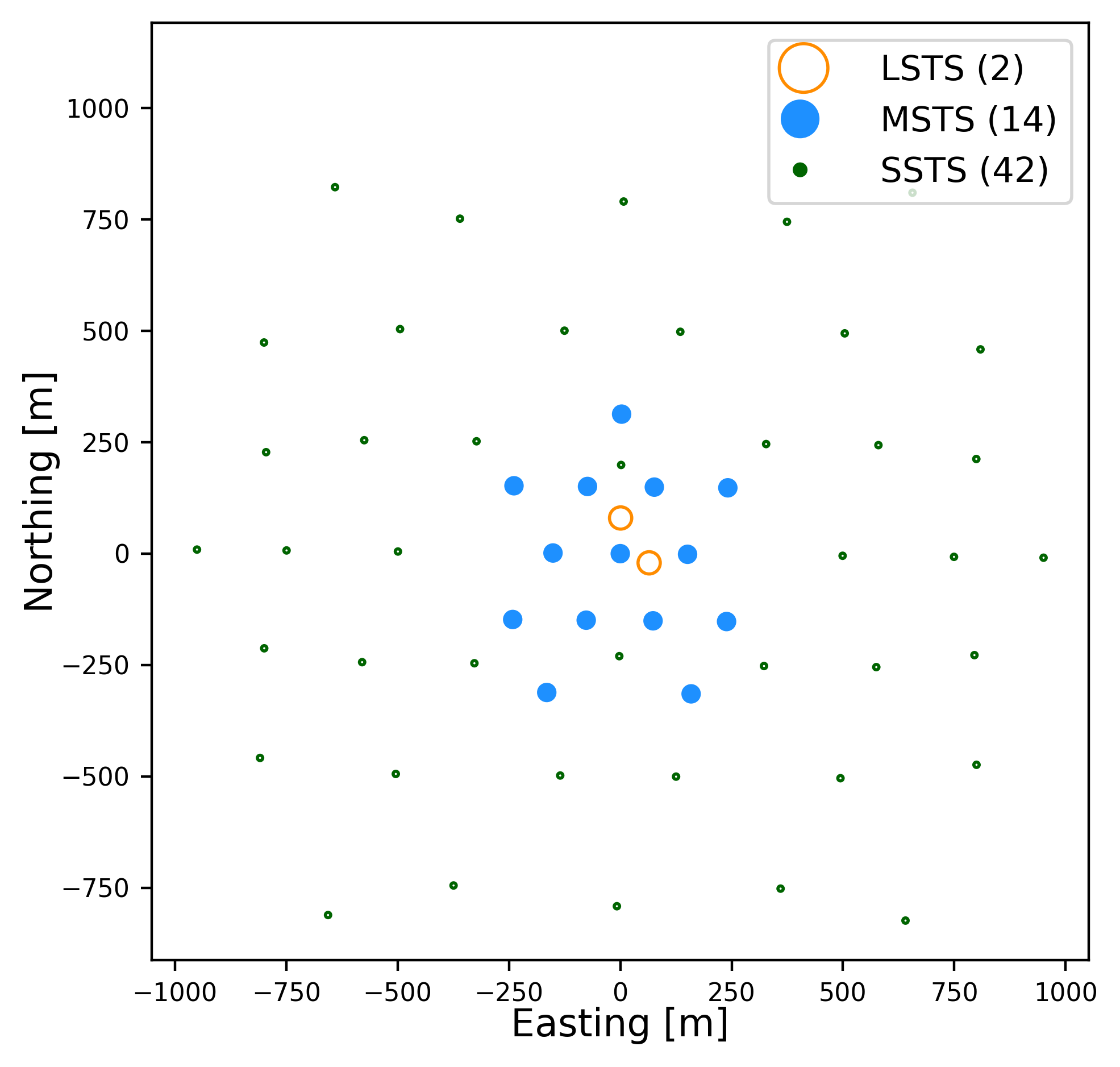

beta#
Element |
|---|
test_layout#
Element |
|---|

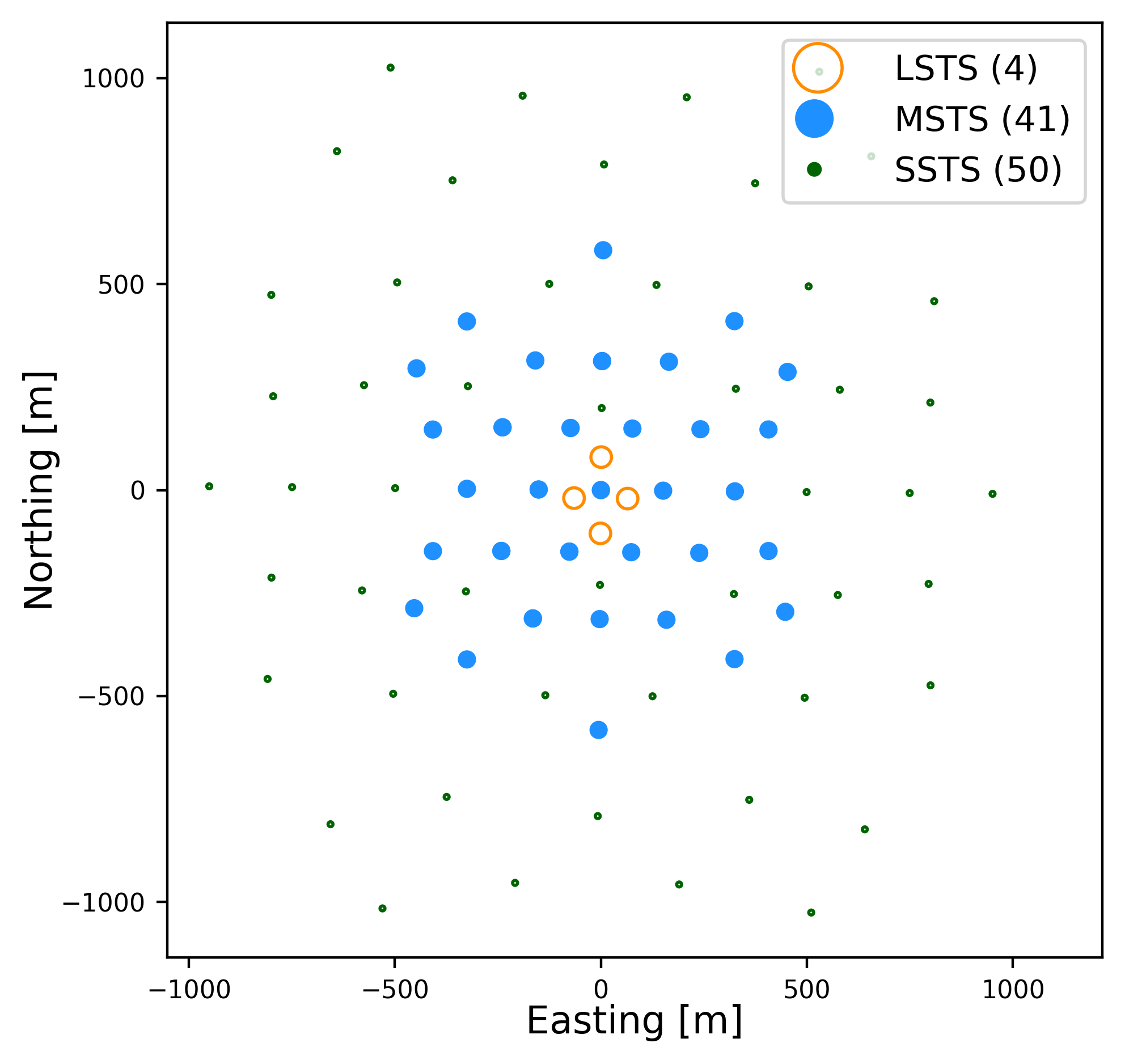

hyper_array#
Element |
|---|

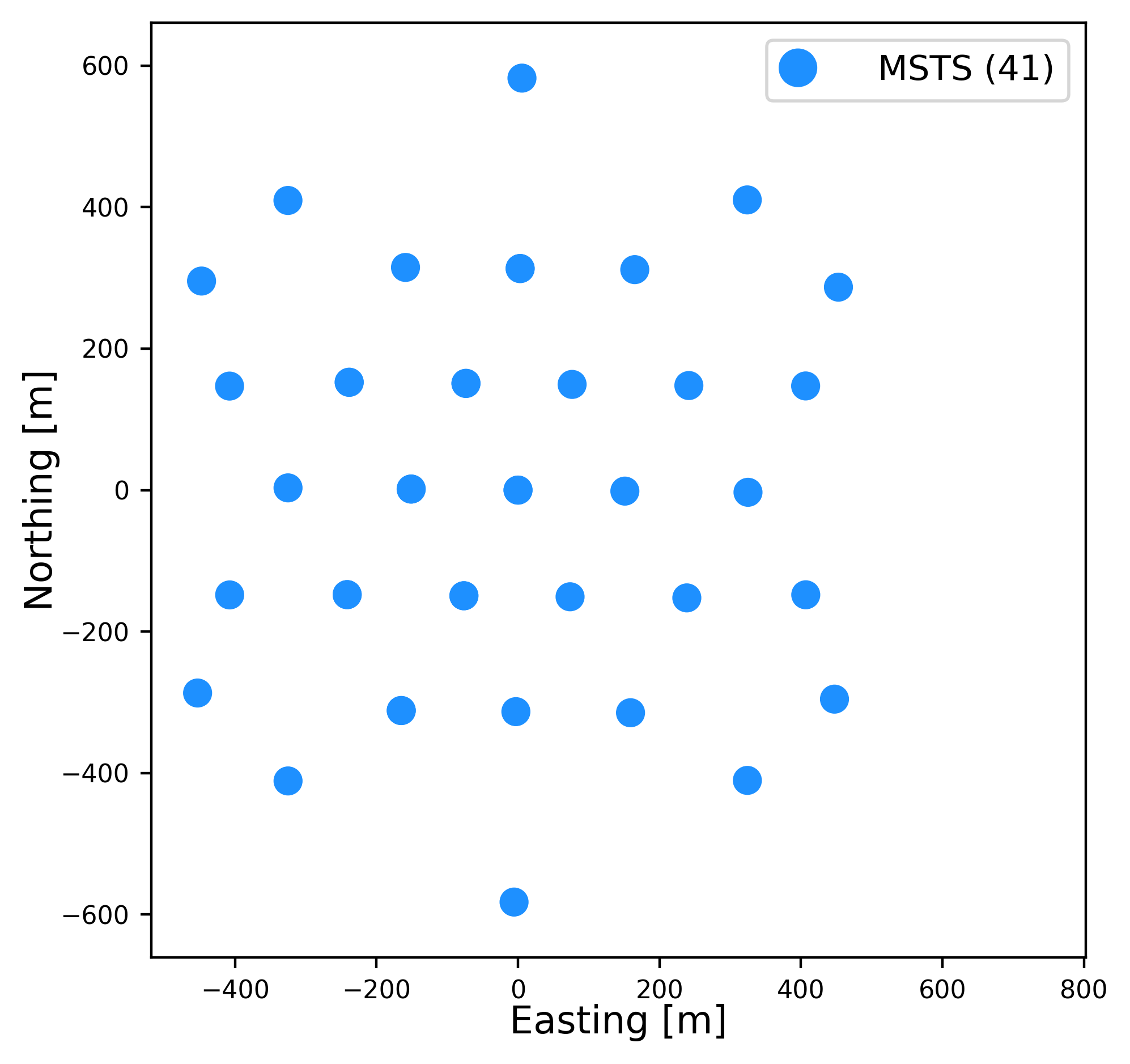

hyper_array_msts#
Element |
|---|

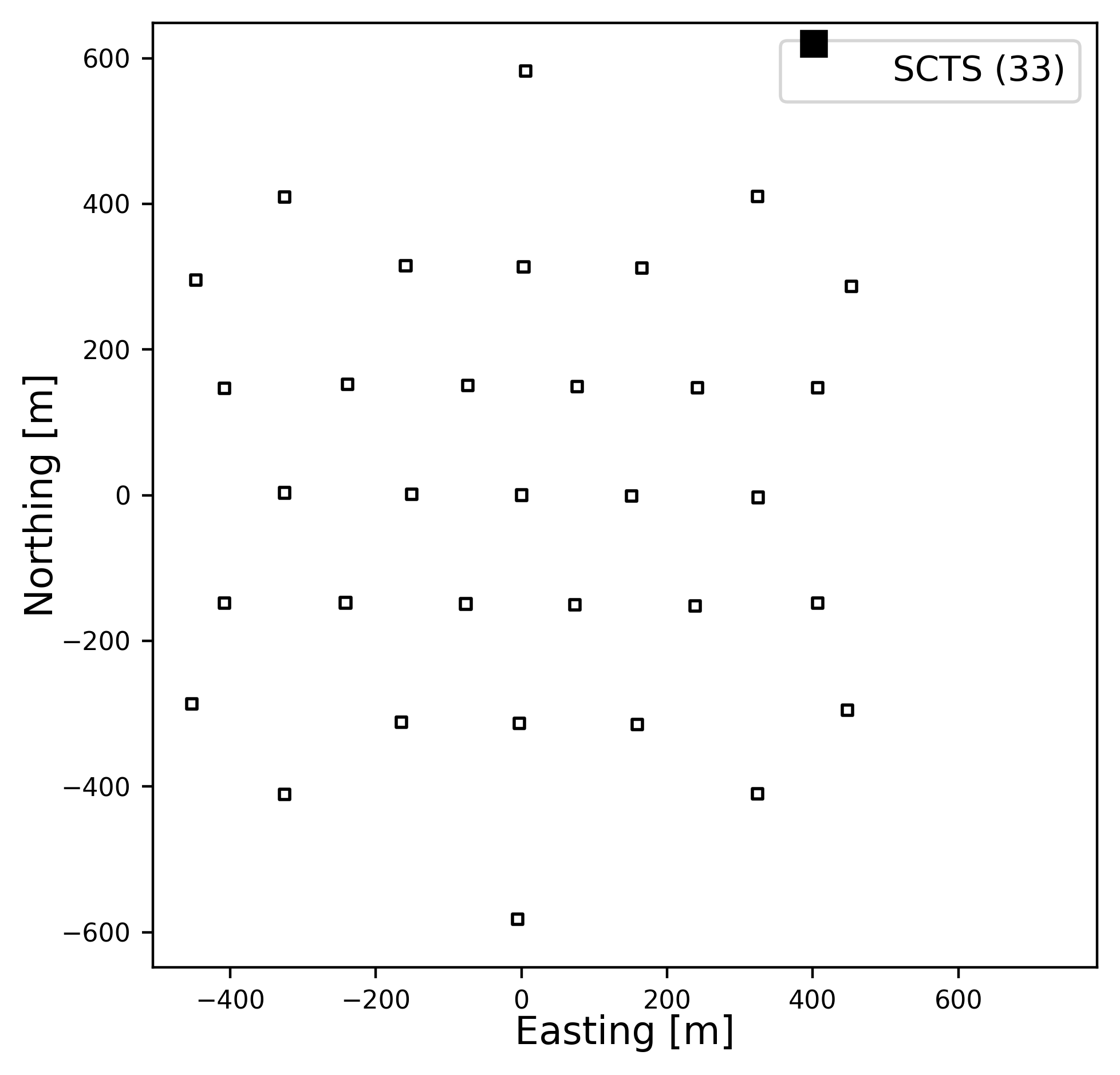

hyper_array_scts#
Element |
|---|

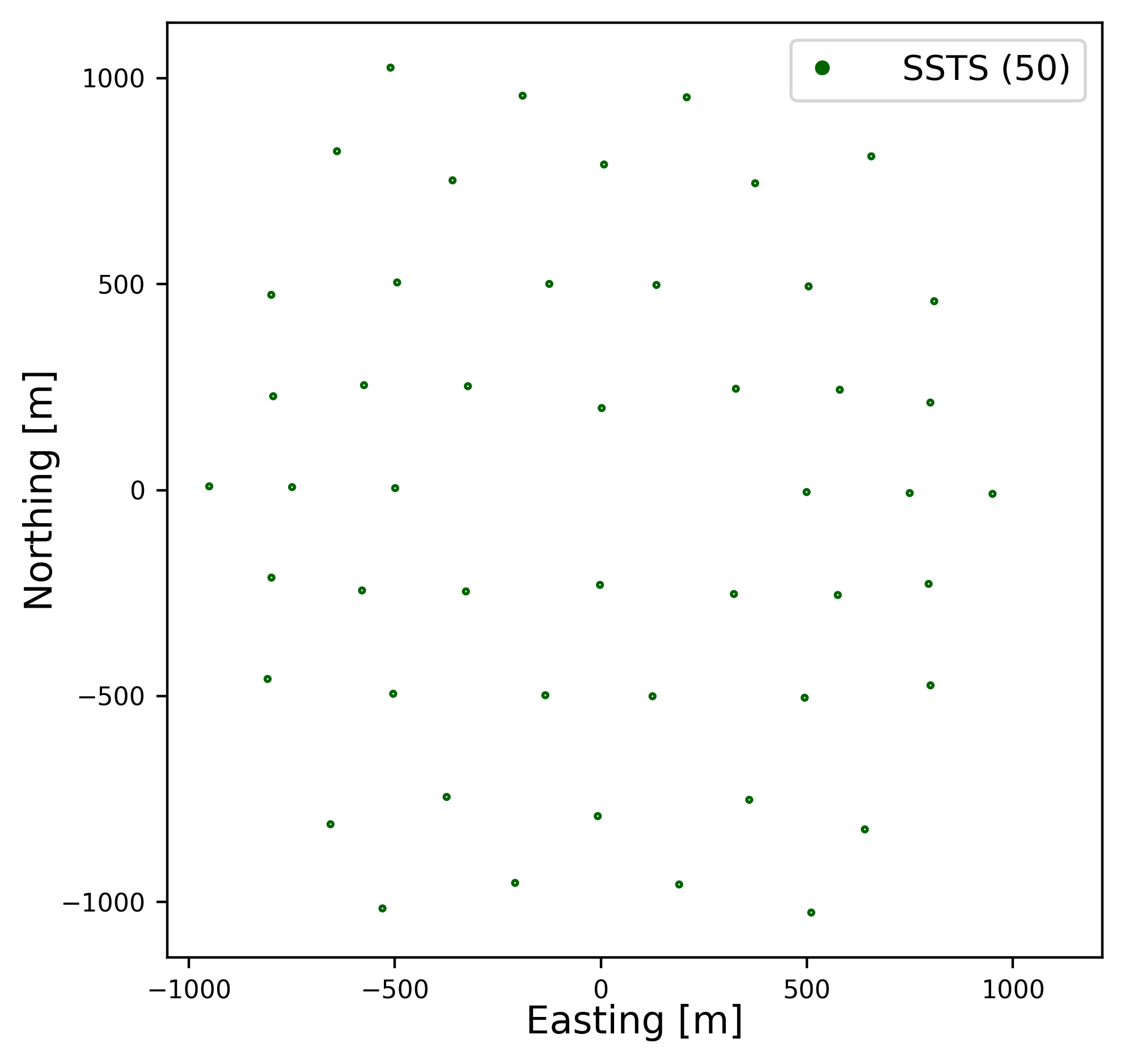

hyper_array_ssts#
Element |
|---|

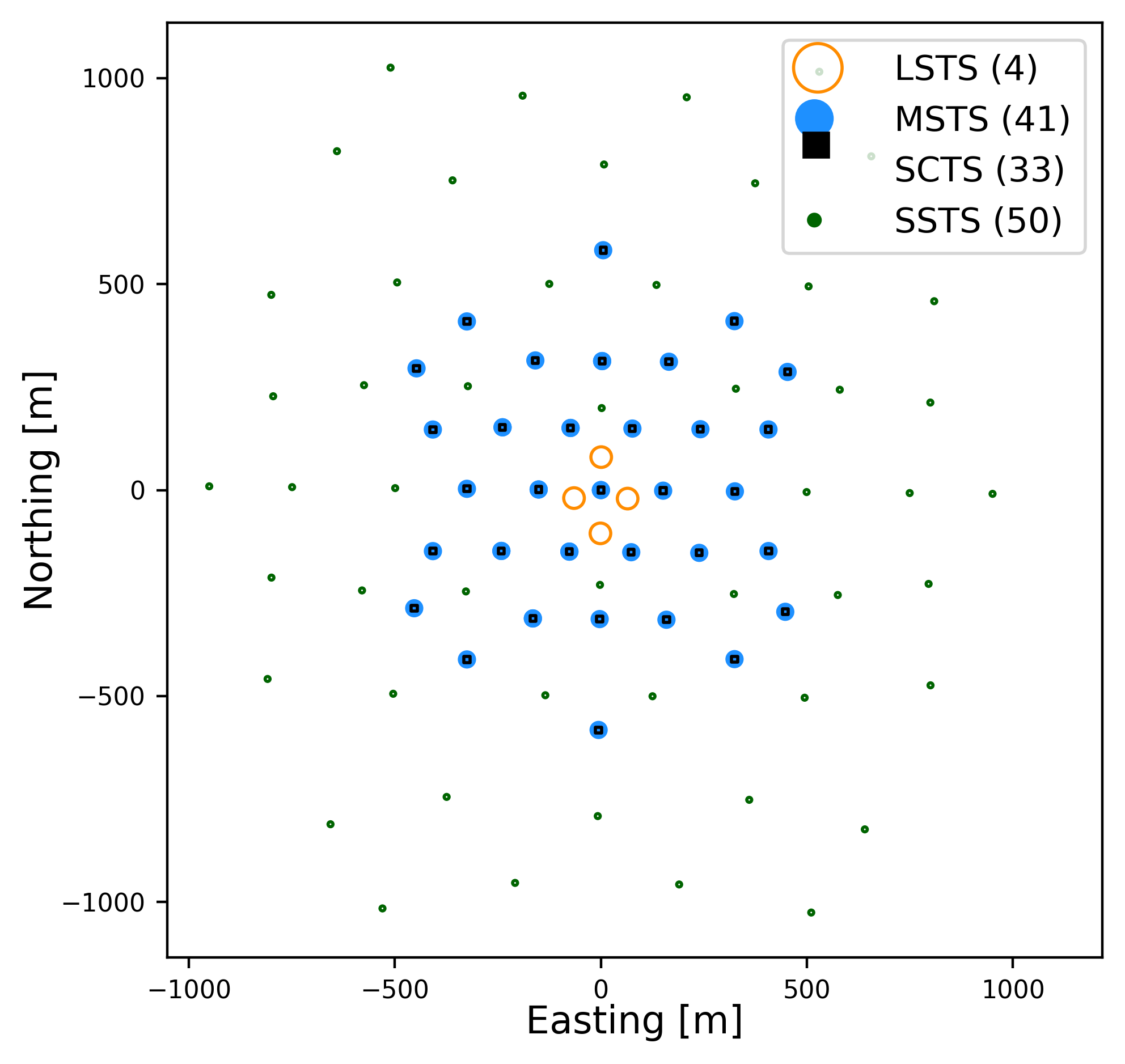

hyper_array_with_scts#
Element |
|---|
Array Trigger Configurations#
Trigger Name |
Multiplicity |
Width |
Hard Stereo |
Min Separation |
|---|---|---|---|---|
LSTS_array |
2 |
120 ns |
Yes |
None m |
LSTS_single_telescope |
1 |
120 ns |
No |
None m |
MSTS_array |
2 |
400 ns |
No |
30 m |
MSTS_single_telescope |
1 |
400 ns |
No |
None m |
SSTS_array |
2 |
400 ns |
No |
30 m |
SSTS_single_telescope |
1 |
400 ns |
No |
None m |
SCTS_array |
2 |
400 ns |
No |
30 m |
SCTS_single_telescope |
1 |
400 ns |
No |
None m |
