Observatory Parameters - North Site

Parameter	Value	Parameter Version
array_layouts	View Array Layouts	2.0.1
array_triggers	View Trigger Configurations	1.0.0
array_window	1000.0 ns	1.0.0
atmospheric_profile	atmprof_ecmwf_north_winter_fixed.dat	1.0.0
atmospheric_transmission	atm_trans_2156_1_3_2_0_0_0.1_0.1.dat	2.0.0
corsika_observation_level	2156.0 m	2.0.0
epsg_code	32628	1.0.0
geomag_horizontal	30.909 uT	2.0.0
geomag_rotation	-4.3167 deg	2.0.0
geomag_vertical	23.409 uT	2.0.0
nsb_reference_spectrum	Benn_LaPalma_sky_converted.lis	1.0.0
nsb_reference_value	0.24 1 / (ns sr cm2)	1.0.0
nsb_scaling_factor	1.0	1.0.0
reference_point_altitude	2177.0 m	1.0.0
reference_point_latitude	28.7621661 deg	2.0.1
reference_point_longitude	-17.8920302 deg	2.0.1
reference_point_utm_east	217608.975 m	2.0.0
reference_point_utm_north	3185067.275 m	2.0.0

Array Layouts

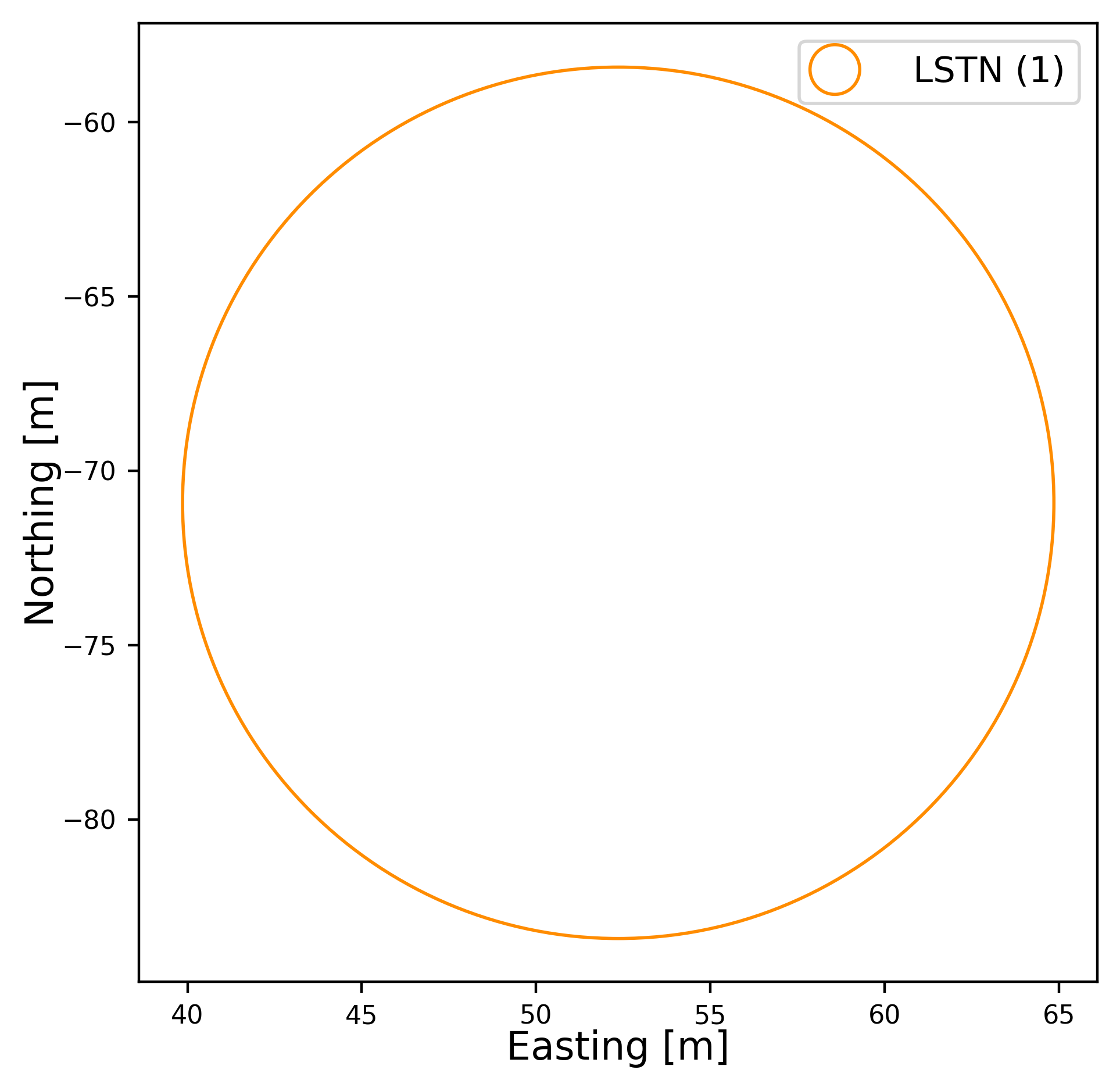

1lst

Element
LSTN-01

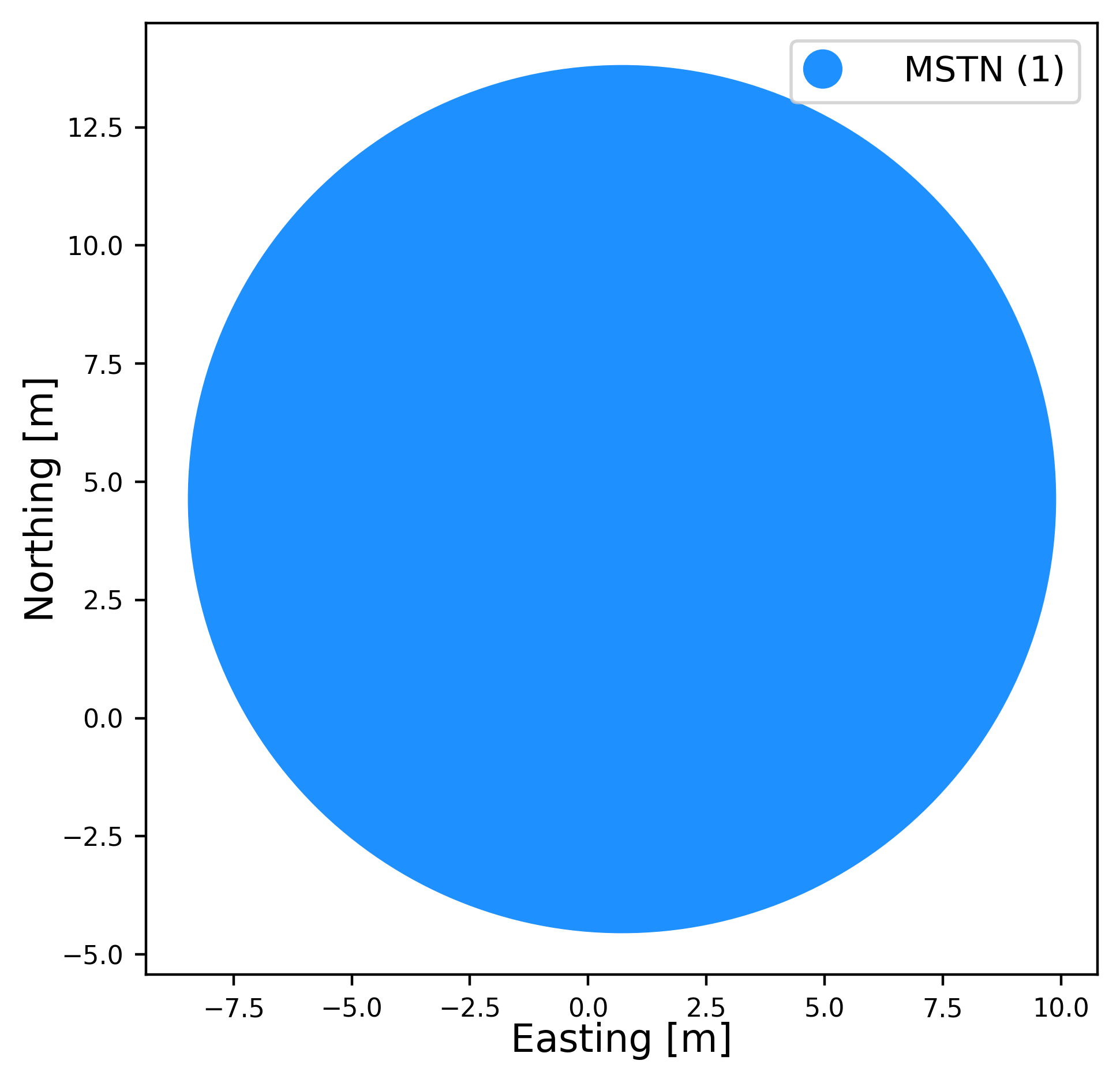

1mst

Element
MSTN-15

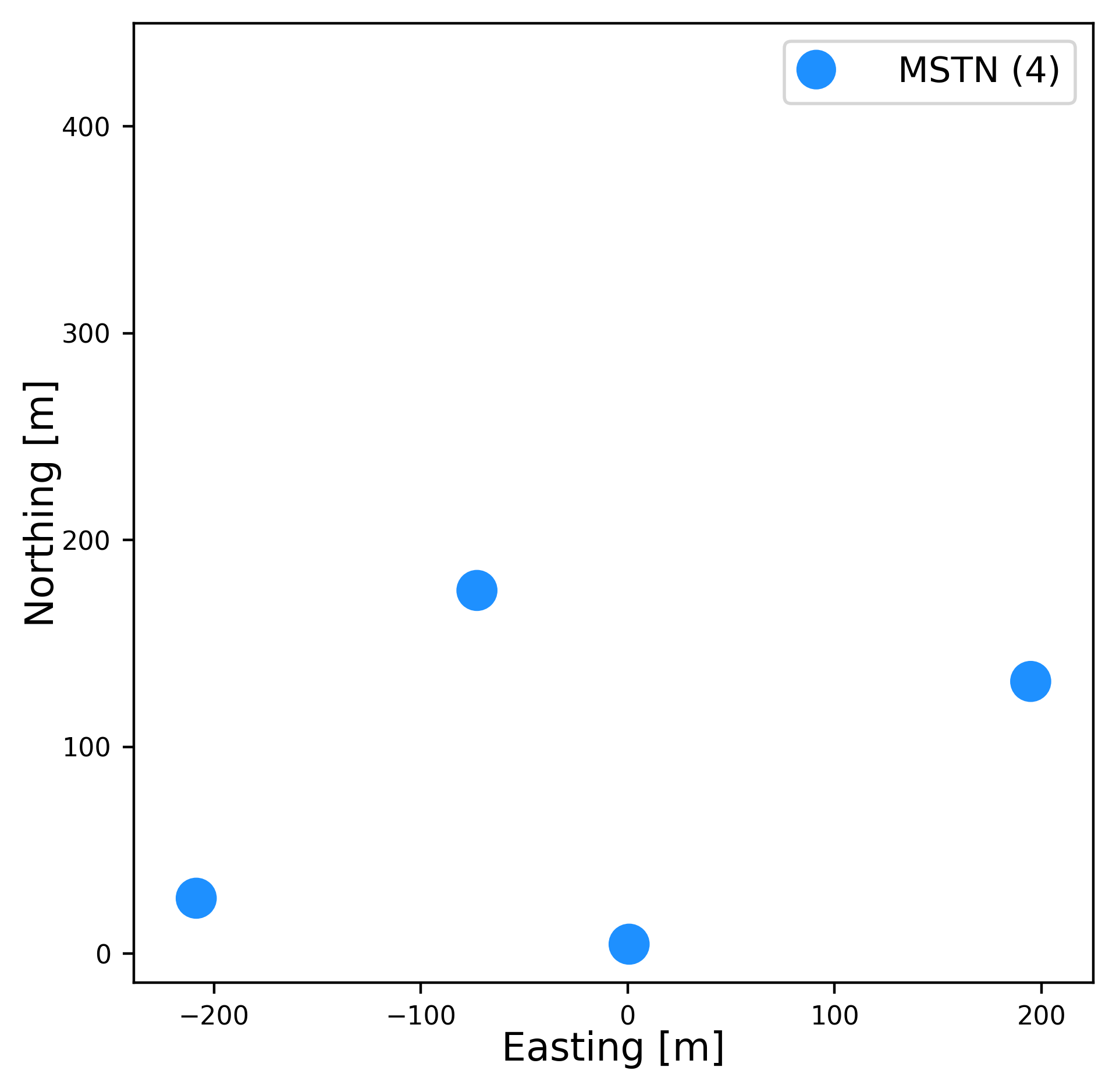

4mst

Element
MSTN-03
MSTN-04
MSTN-05
MSTN-15

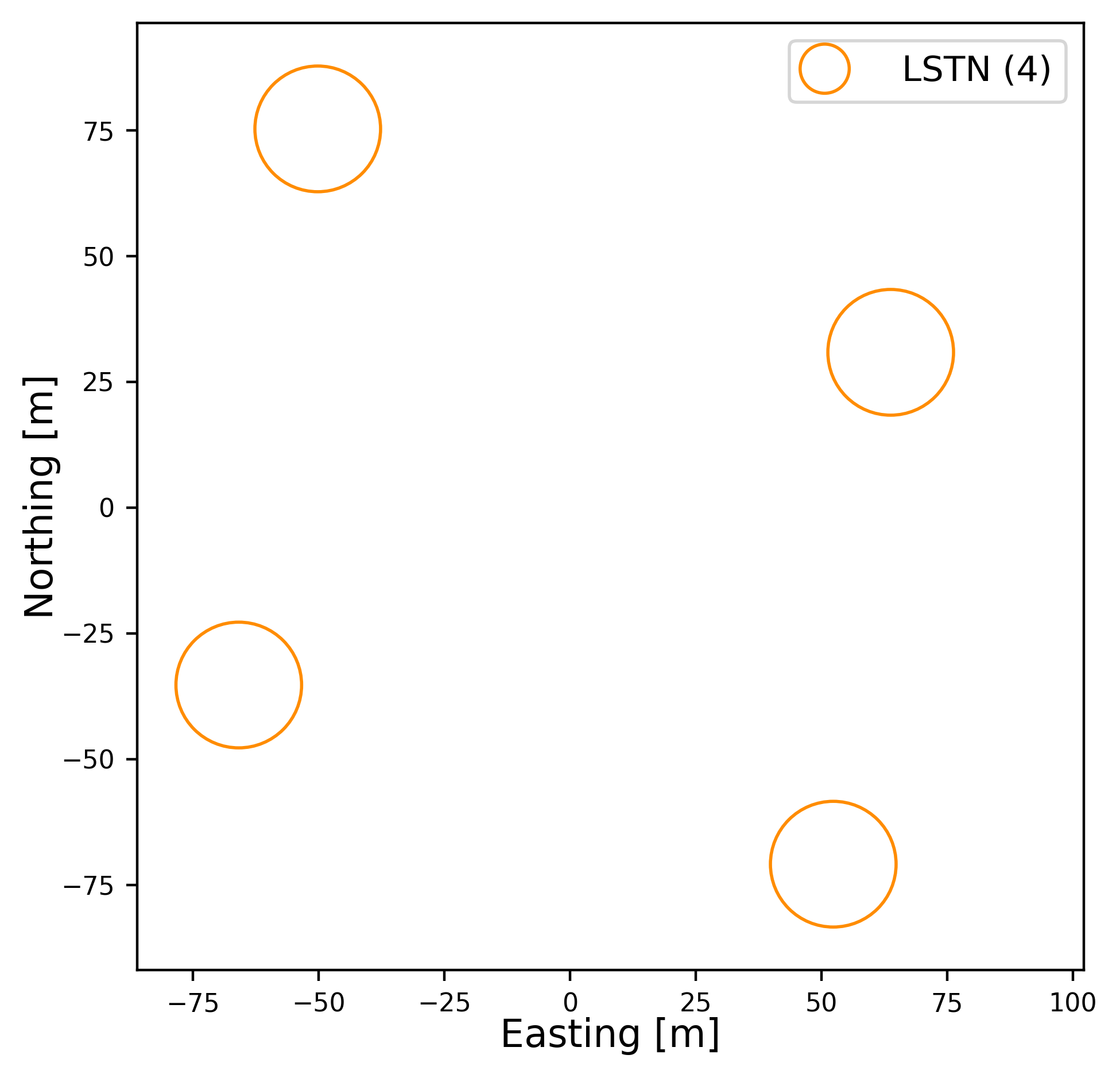

subsystem_lsts

Element
LSTN-01
LSTN-02
LSTN-03
LSTN-04

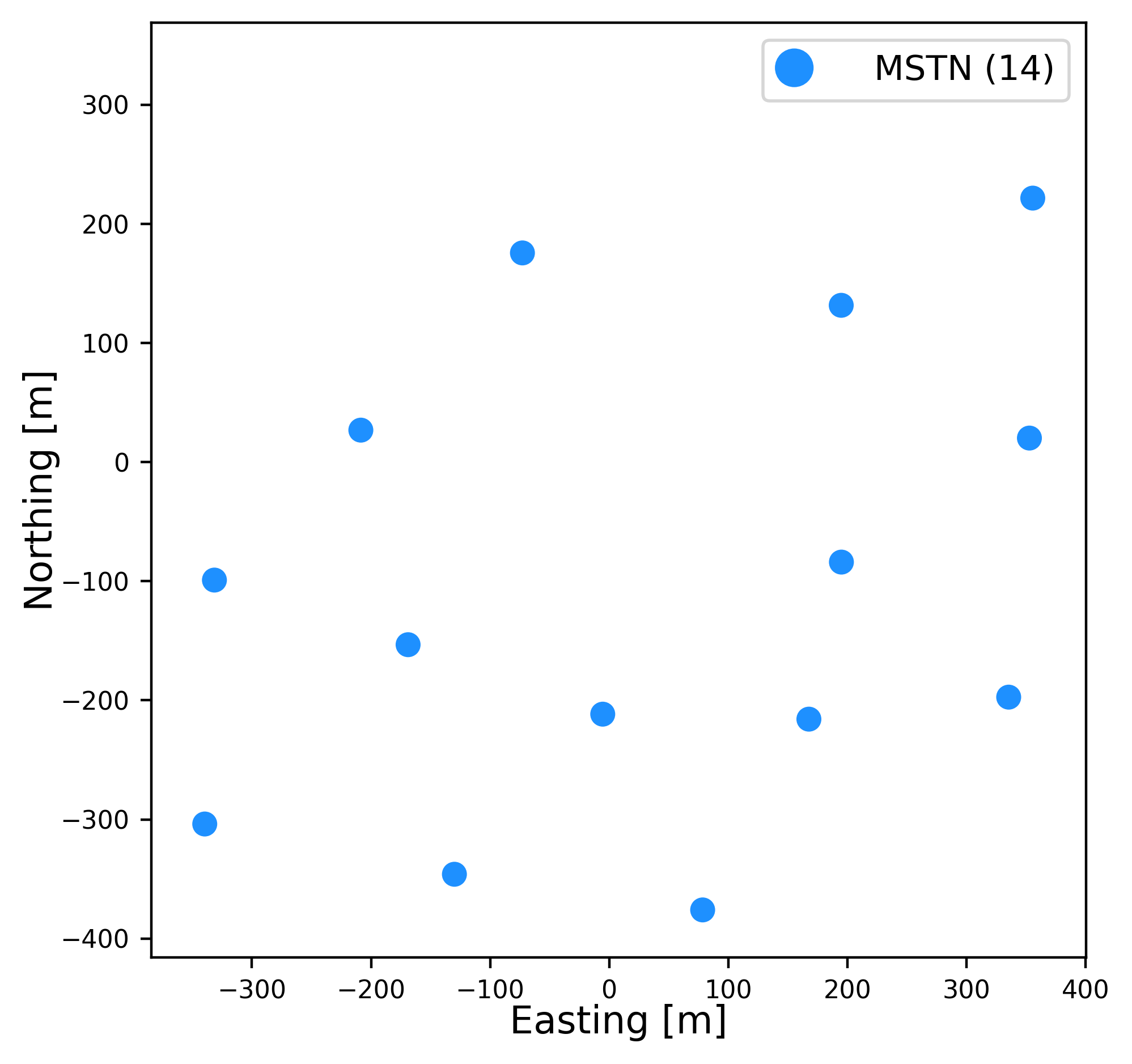

subsystem_msts

Element
MSTN-01
MSTN-02
MSTN-03
MSTN-04
MSTN-05
MSTN-06
MSTN-07
MSTN-08
MSTN-09
MSTN-10
MSTN-11
MSTN-12
MSTN-13
MSTN-14

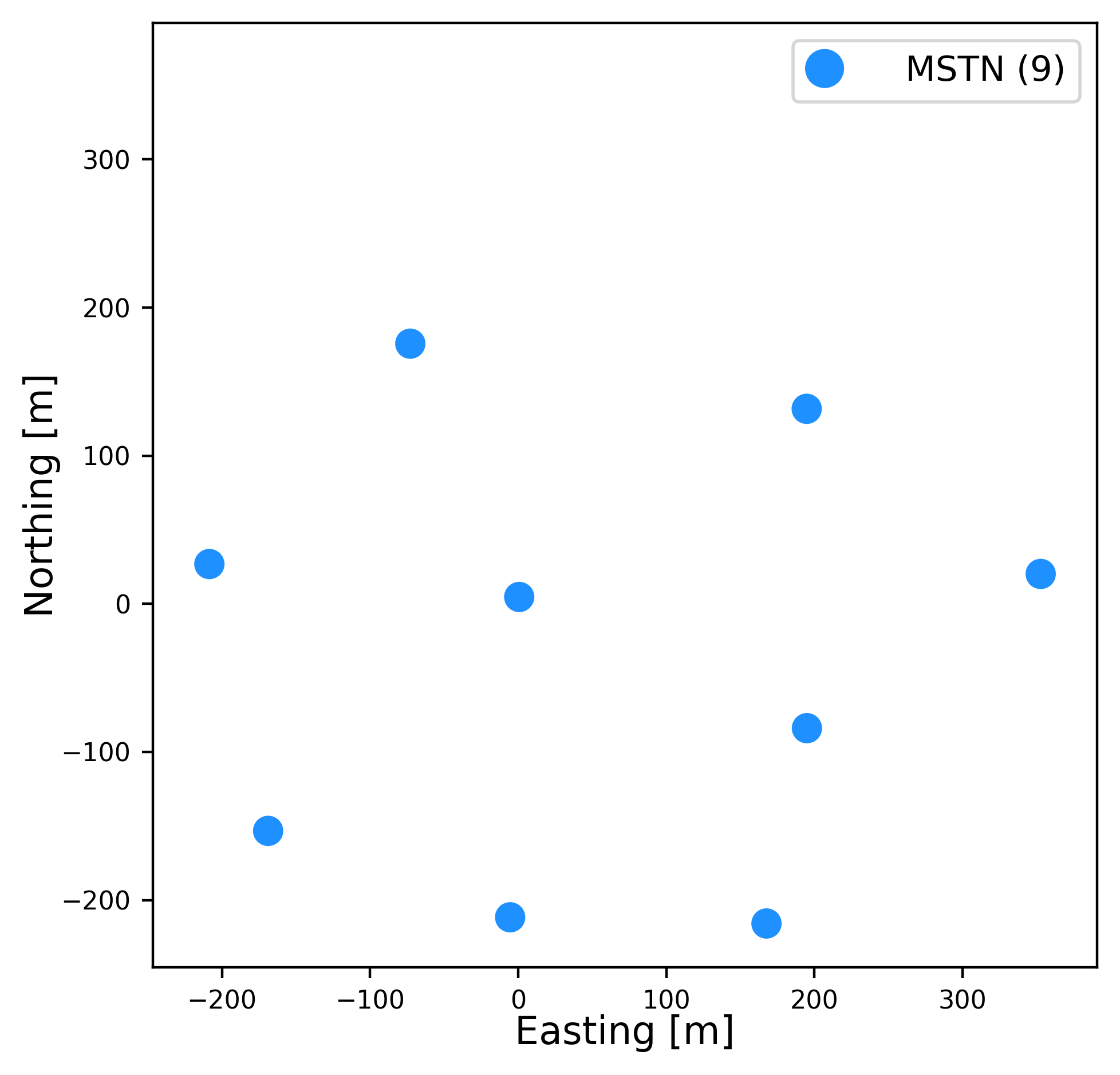

alpha_msts

Element
MSTN-01
MSTN-02
MSTN-03
MSTN-04
MSTN-05
MSTN-06
MSTN-07
MSTN-10
MSTN-15

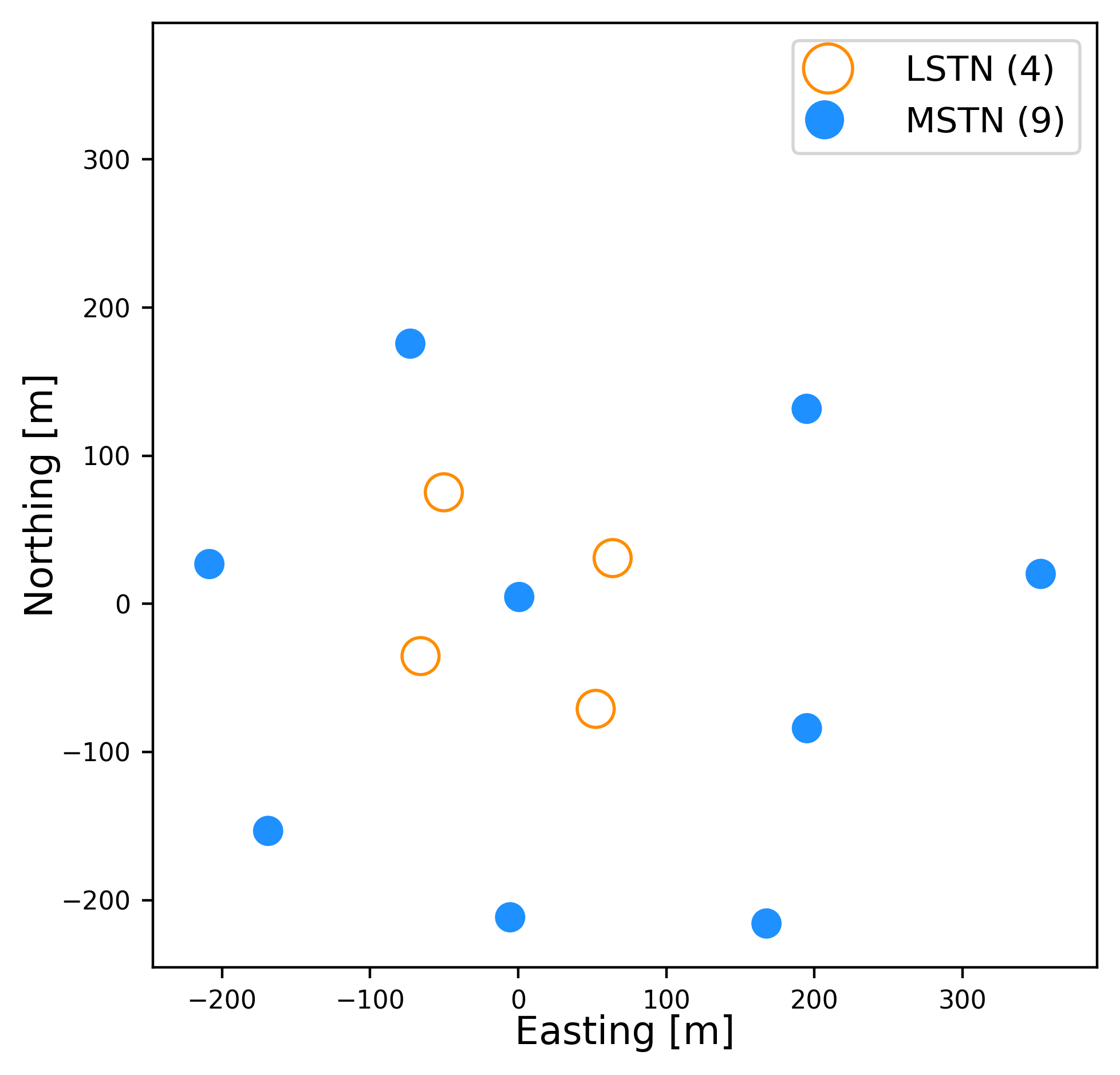

alpha

Element
LSTN-01
LSTN-02
LSTN-03
LSTN-04
MSTN-01
MSTN-02
MSTN-03
MSTN-04
MSTN-05
MSTN-06
MSTN-07
MSTN-10
MSTN-15

test_layout

Element
LSTN-01
LSTN-02
LSTN-03
LSTN-04
MSTN-01
MSTN-02
MSTN-03
MSTN-04
MSTN-05
MSTN-06
MSTN-07
MSTN-10
MSTN-15

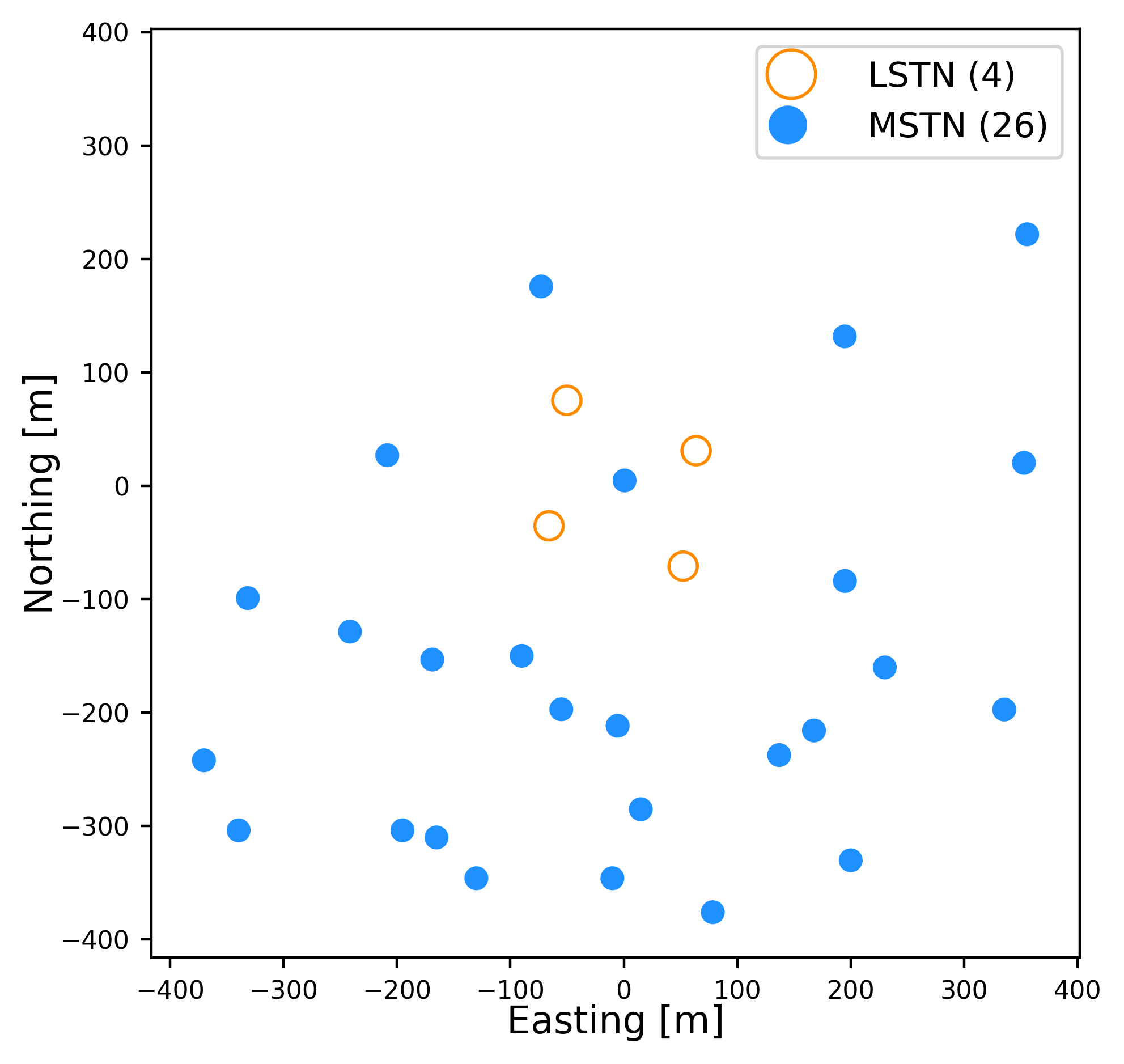

hyper_array

Element
LSTN-01
LSTN-02
LSTN-03
LSTN-04
MSTN-01
MSTN-02
MSTN-03
MSTN-04
MSTN-05
MSTN-06
MSTN-07
MSTN-08
MSTN-09
MSTN-10
MSTN-100
MSTN-101
MSTN-103
MSTN-104
MSTN-105
MSTN-11
MSTN-113
MSTN-114
MSTN-115
MSTN-12
MSTN-13
MSTN-14
MSTN-15
MSTN-201
MSTN-202
MSTN-207

Array Trigger Configurations

Trigger Name	Multiplicity	Width	Hard Stereo	Min Separation
LSTN_array	2	120 ns	Yes	None m
LSTN_single_telescope	1	120 ns	No	None m
MSTN_array	2	200 ns	No	40 m
MSTN_single_telescope	1	200 ns	No	None m
