transmission_sstcam_weighted_220512

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

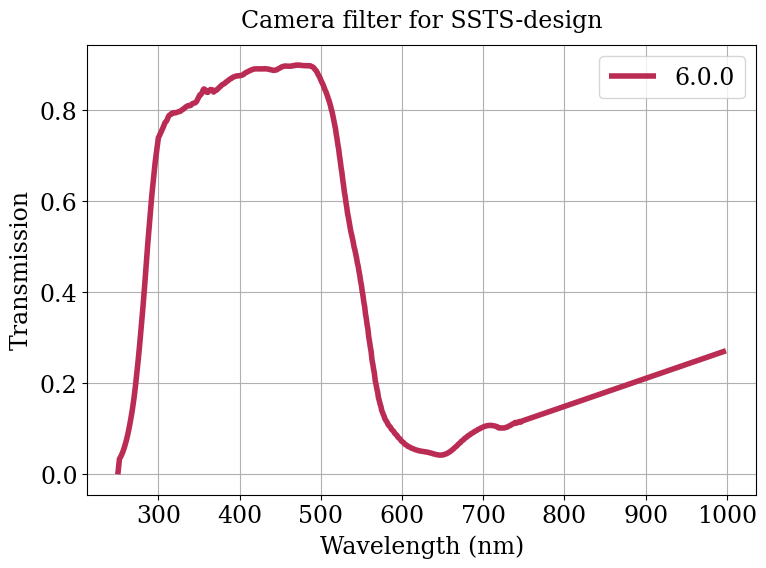

# Based on measured angle-dependent transmission for SST camera window
# (Durham window Run3) for the wavelength range 300 - 750 nm.
# Values >750 nm have been linearly extrapolated. Further measurements are
# planned to extend the measured wavelength range, which will be used as input
# to future simtelarray productions.
# Weighted average over angles of incidence on camera with distribution
# obtained from ROBAST ray-tracing, by Akira Okumura 2021-08-25.
# Prepared by Jason Watson 2022-05-12.
# Values below 300 nm based on transmission curve of Borofloat33
# (for 1 mm thickness at 50 deg incidence angle, scaled to match at 300 nm, KB 2022-05-27).
#
# wl average_trans
250     0.         # Cut-off
252	0.0338252  # Borofloat33 1 mm at 50 deg
253	0.036843   # ...
254	0.0402556
255	0.0441175
256	0.0484818
257	0.0533722
258	0.0587796
259	0.0646933
260	0.0711049
261	0.0780392
262	0.0855477
263	0.0936823
264	0.102474
265	0.111865
266	0.121778
267	0.132192
268	0.143293
