ref_LST_2020-04-23#

The full file can be found in the Simulation Model repository here.

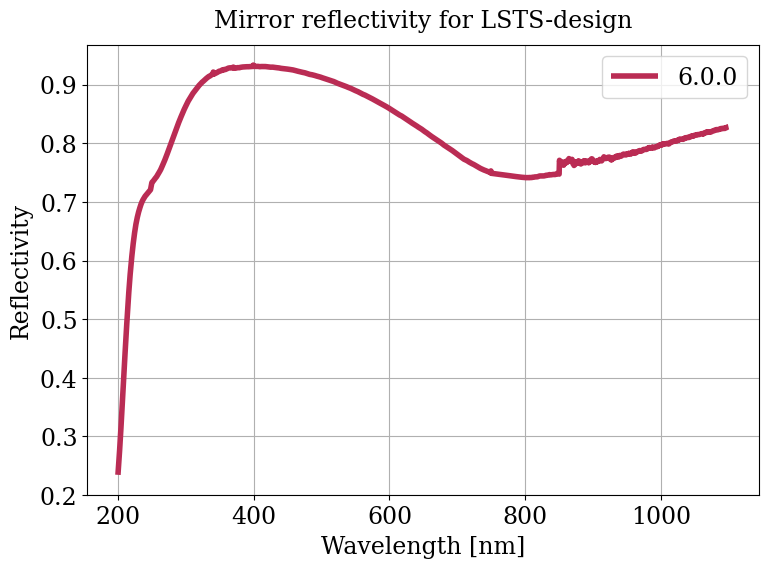

Parameter plot.

The first 30 lines of the file are:

# Provided by Yusuke Suda to MC team on 2020-04-23 (see Redmine issue 21060),
# superseding ref_LST_2020-04-21.dat. Includes extended wavelength coverage.
# Scaled from percentage to absolute values, as expected by sim_telarray. (KB).
#
# Col. 1: wavelength [nm]
# Col. 2: reflectivity
# Col. 3: 1sigma (not used by sim_telarray)
#
 200.0  	0.23457  	0.03764
 200.5  	0.24264  	0.03701
 201.0  	0.25071  	0.03669
 201.5  	0.25940  	0.03648
 202.0  	0.26809  	0.03651
 202.5  	0.27721  	0.03663
 203.0  	0.28632  	0.03707
 203.5  	0.29609  	0.03773
 204.0  	0.30586  	0.03844
 204.5  	0.31610  	0.03939
 205.0  	0.32634  	0.04040
 205.5  	0.33679  	0.04150
 206.0  	0.34725  	0.04268
 206.5  	0.35788  	0.04383
 207.0  	0.36850  	0.04498
 207.5  	0.37904  	0.04604
 208.0  	0.38958  	0.04705
 208.5  	0.40029  	0.04795
 209.0  	0.41099  	0.04884
 209.5  	0.42143  	0.04955
 210.0  	0.43188  	0.05010
 210.5  	0.44231  	0.05069
