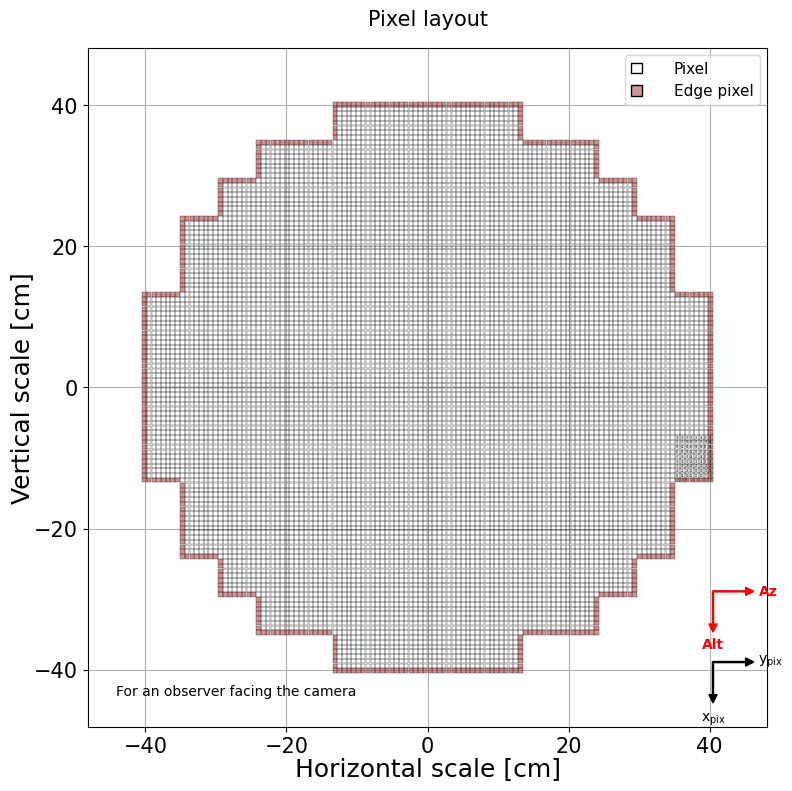

camera_CTA-SC-MST-54mmModPitch_0.5mmModDS_6.5mmPixAct_r1

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

# This file was generated from the following original file
#   camera_CTA-SC-MST-54mmModPitch_0.5mmModDS_6.5mmPixAct_Prod3.dat
# with new module number, board number, and channel number.
# The board number is set to identify pixels belonging to the same super-pixel.
#
# PixType format:
# Par.  1: pixel type (here always 1)
#       2: PMT type (must be 0)
#       3: cathode shape type
#       4: visible cathode diameter [cm]
#       5: funnel shape type (see above)
#       6: funnel diameter (flat-to-flat for hex.) [cm]
#       7: depth of funnel [cm]
#       8: a) funnel efficiency "filename", b) funnel plate transparency
#       9: a) optional wavelength "filename", b) funnel wall reflectivity
# In case a) in column 8, columns 3+7 are not used. If in case a) the
# optional file name for the wavelength dependence is provided, the
# overall scale in the file provided as parameter 8 is ignored because
# it is rescaled such that the average over all mirrors is equal to
# the given wavelength dependent value.
#
# Shape types: 0: circ., 1: hex(flat x), 2: sq., 3: hex(flat y)
#

PixType 1   0  2 0.65   2 0.65 0.0   "Angular_response_MPPC_Prod3.dat"

# Pixel format:
# Par.  1: pixel number (starting at 0)
#       2: pixel type (must be 1)
#       3: x position [cm]
