camera_CTA-MST-FlashCam_patch3_digitalsum9_neweff2#

The full file can be found in the Simulation Model repository here.

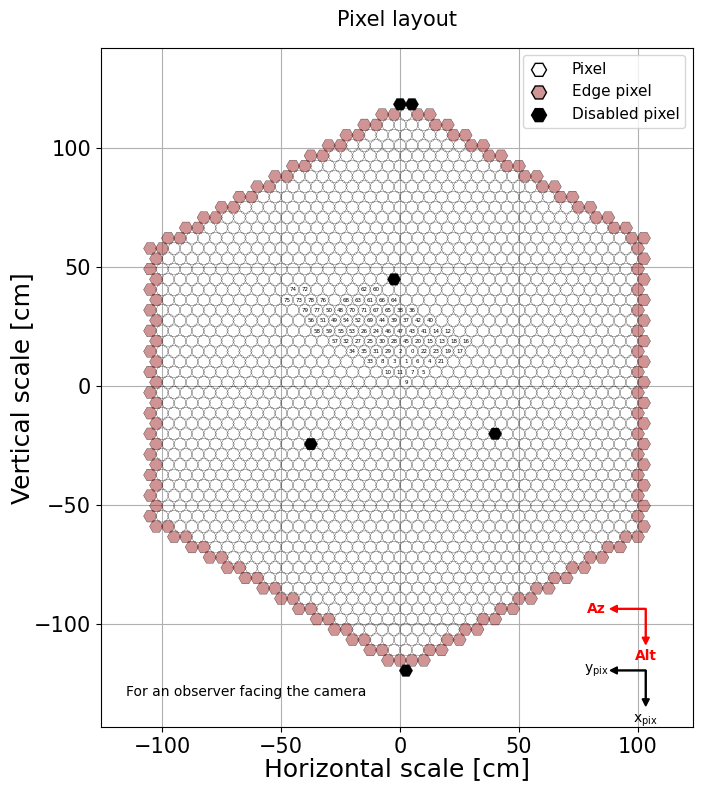

Parameter plot.

The first 30 lines of the file are:

# Disabling all inactive pixels in trigger scheme.
# Grouping DigitalSumTrigger group pixels to patches of size 3 with dsum_patchify.


# PixType format:
# Par.  1: pixel type (here always 1)
#       2: PMT type (must be 0)
#       3: cathode shape type
#       4: visible cathode diameter [cm]
#       5: funnel shape type (see above)
#       6: funnel diameter (flat-to-flat for hex.) [cm]
#       7: depth of funnel [cm]
#       8: a) funnel efficiency "filename", b) funnel plate transparency
#       9: a) optional wavelength "filename", b) funnel wall reflectivity
# In case a) in column 8, columns 3+7 are not used. If in case a) the
# optional file name for the wavelength dependence is provided, the
# overall scale in the file provided as parameter 8 is ignored because
# it is rescaled such that the average over all mirrors is equal to
# the given wavelength dependent value.
#
# Shape types: 0: circ., 1: hex(flat x), 2: sq., 3: hex(flat y)

# PixType 1   0  0 2.500   3 4.900 5.100   "CTA-LST_lightguide_eff.dat"
# Updated for MST lightcone efficiency:
# PixType 1   0  0 2.500   3 4.900 5.100   "CTA-MST_lightguide_boost8_az-av_wl-av.dat"
# Feb. 2019 update from FlashCam team, average over orientation angles and
# for expected wavelengths (factor 0.995 w.r.t. provided 355 nm curve):
PixType 1   0  0 2.500   3 4.900 5.100   "CTA-MST_lightguide_FC_weighted_average.dat"

# Pixel format:
