SPE_Gentile_oct0d05_spe0d05_d2022-03-23#

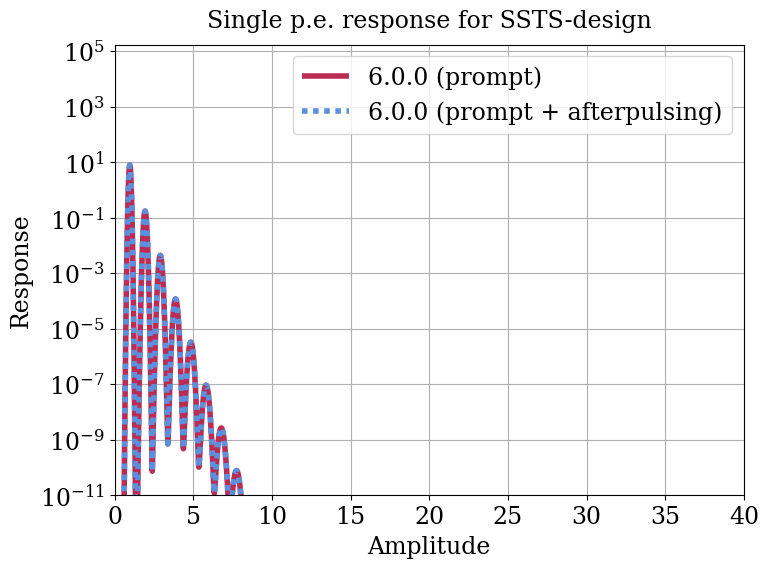

Parameter plot.

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

# Prod6 Single Photo Electron spectrum for SST
# Produced by J. Watson, 23/03/2022
# Pessimistic assumption of LVR3 50um @ 5.9 V
# Parameters :
#  - Optical crosstalk : 0.05
#  - SiPM gain smearing : 0.05 p.e.
# SiPM formula from Gentile 2010, see following paper
#  - http://adsabs.harvard.edu/abs/2010arXiv1006.3263G
# Normalised to have integral & average of 1.
# Note that the Prompt and Prompt x AP columns are the same
#
# Ampl.     Prompt          (Prompt x AP)
#------     --------        ---------------
0.000000	1.104190e-86	1.104190e-86
0.009700	5.932766e-85	5.932766e-85
0.019399	3.062416e-83	3.062416e-83
0.029099	1.518674e-81	1.518674e-81
0.038799	7.235332e-80	7.235332e-80
0.048498	3.311660e-78	3.311660e-78
0.058198	1.456218e-76	1.456218e-76
0.067898	6.151776e-75	6.151776e-75
0.077598	2.496710e-73	2.496710e-73
0.087297	9.734844e-72	9.734844e-72
0.096997	3.646560e-70	3.646560e-70
0.106697	1.312294e-68	1.312294e-68
0.116396	4.537038e-67	4.537038e-67
0.126096	1.506979e-65	1.506979e-65
0.135796	4.808783e-64	4.808783e-64
0.145495	1.474201e-62	1.474201e-62
0.155195	4.341818e-61	4.341818e-61
