PDE_lvr3_6mm_75um_uncoated_5.9V#

The full file can be found in the Simulation Model repository here.

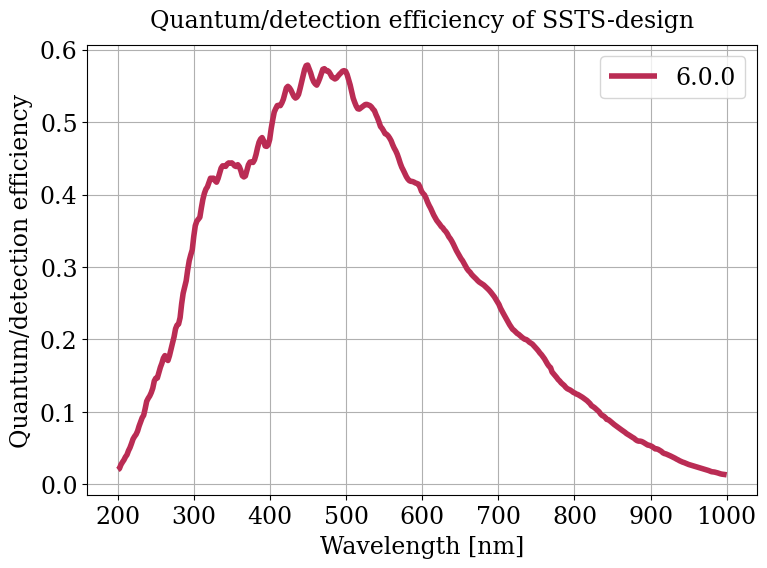

Parameter plot.

The first 30 lines of the file are:

# PDE values for prod-6 SST SiPMs. Config prepared by Jason Watson (d220513).
# Created by using the PDE vs OV curve of lvr3_6mm_50um_uncoated to scale the
# PDE @ 450nm of the lvr3_6mm_75um (uncoated) PDE curve.
# 5.9 V over-voltage is used.
# Values are absolute (not percentage).
# Weighted average over angles of incidence on pixels with distribution
# obtained from ROBAST ray-tracing, by Akira Okumura 2021-08-25.
# Column 1: wavelength [nm]
#        2: PDE [absolute value instead of percentage]
200.000	0.01998
201.995	0.02149
203.990	0.02687
205.985	0.03040
207.980	0.03353
209.975	0.03770
211.970	0.04067
213.965	0.04630
215.960	0.05060
217.955	0.05625
219.950	0.06238
221.945	0.06596
223.940	0.06884
225.935	0.07351
227.930	0.08041
229.925	0.08614
231.920	0.09179
233.915	0.09523
235.910	0.10442
237.905	0.11457
239.900	0.11869
