spe_FlashCam_7dynode_v0a#
The full file can be found in the Simulation Model repository here.
The first 30 lines of the file are:

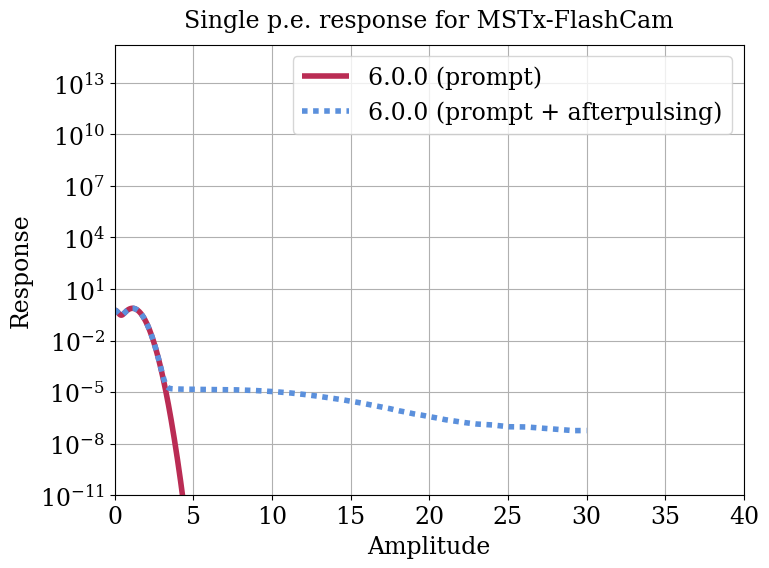

# Preliminary single-p.e. response for PMTs in FlashCam.
# Measurement at higher than nominal gain.
# Third column, including afterpulses, is for 7-dynode PMTS.
# Reformatted and cubic-spline interpolated to finer binning
# (from 0.05 to 0.025 p.e.) by KB to satisfy the 1% accuracy.
# Not scaling x axis by factor 0.999907
# Scaling y axis by factor 1.01452
# Mean(prompt) = 1.000, peak at 1.138 (sum=1.000)
# Fraction of events below 10% of mean: 0.057
# Fraction of events below 20% of mean: 0.107
# Sqrt(Excess noise factor): 1.135, ENF = 1.289
# Note: collection efficiency losses should be included in low amplitude signals.
0.000000 0.58108 0.58108 %%% original: 0.000000 0.57276 0.57276
0.025000 0.58085 0.58085 %%% original: 0.025000 0.57254 0.57254
0.050000 0.57676 0.57677 %%% original: 0.050000 0.56851 0.56851
0.075000 0.56591 0.56591 %%% original: 0.075000 0.5578 0.55781
0.100000 0.54923 0.54923 %%% original: 0.100000 0.54136 0.54137
0.125000 0.52844 0.52844 %%% original: 0.125000 0.52087 0.52088
0.150000 0.50451 0.50451 %%% original: 0.150000 0.49728 0.49729
0.175000 0.47828 0.47828 %%% original: 0.175000 0.47143 0.47144
0.200000 0.45091 0.45091 %%% original: 0.200000 0.44445 0.44445
0.225000 0.42356 0.42357 %%% original: 0.225000 0.4175 0.4175
0.250000 0.39726 0.39726 %%% original: 0.250000 0.39157 0.39158
0.275000 0.37292 0.37292 %%% original: 0.275000 0.36758 0.36758
0.300000 0.35128 0.35128 %%% original: 0.300000 0.34625 0.34625
0.325000 0.33299 0.333 %%% original: 0.325000 0.32823 0.32823
0.350000 0.31846 0.31846 %%% original: 0.350000 0.3139 0.3139
0.375000 0.30797 0.30798 %%% original: 0.375000 0.30356 0.30357
