qe_R12992-100-05b

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

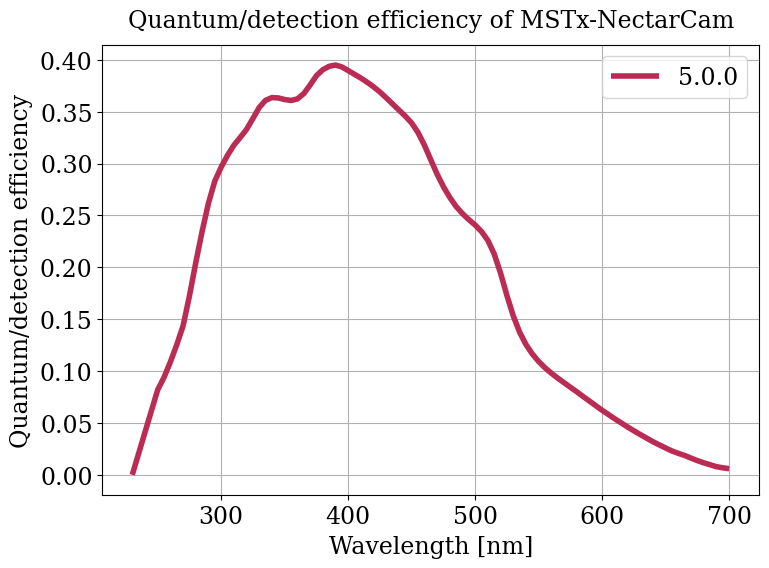

# Average quantum efficiency of 382 PMTs of Hamamatsu type R12992-100-05 in 420 measurements.
# Data from Oleg Kalekin, University Erlangen, March 2018.
# Based on measurements in a circle of 10 mm diameter in the center of the cathode,
# limited by the size of the reference photodiode.
# (Note that some tubes have a dip in sensitivity in the center while
# most are relatively flat in response. Not sure if this is representative (K.B.).)
#
# Col. 1: wavelength [nm]
# Col. 2: average QE [0...1]
# Col. 3: r.m.s. of individual QE values (not used by sim_telarray)
# Col. 4: r.m.s. of QE values after normalizing each PMT to the same
#         mean value in the 350-450 nm range (not used by sim_telarray)
#
# W.l.		QE         	#	sigma      	sigma_r
# ----		------     	#	------     	-------
230             0.              #  (enforce QE going down to zero due to absorption in glass window)
250		0.0818886     	#	0.021787  	0.0209281
255		0.0939379     	#	0.021201  	0.0201079
260		0.108774     	#	0.0217323  	0.0207911
265		0.125239     	#	0.0203261  	0.0190779
270		0.143531     	#	0.0196813  	0.0185265
275		0.172292     	#	0.0194255  	0.0179313
280		0.204453     	#	0.0195648  	0.0175941
285		0.234614     	#	0.019441  	0.0168335
290		0.261815     	#	0.0196895  	0.0164076
295		0.283185     	#	0.0197039  	0.0155732
300		0.296615     	#	0.019815  	0.014821
305		0.307959     	#	0.0200188  	0.0140263
310		0.31767     	#	0.0205694  	0.013171
315		0.325178     	#	0.0208843  	0.0125085
