SPE_Gentile_oxt0d08_spe0d05_d2018-10-04

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

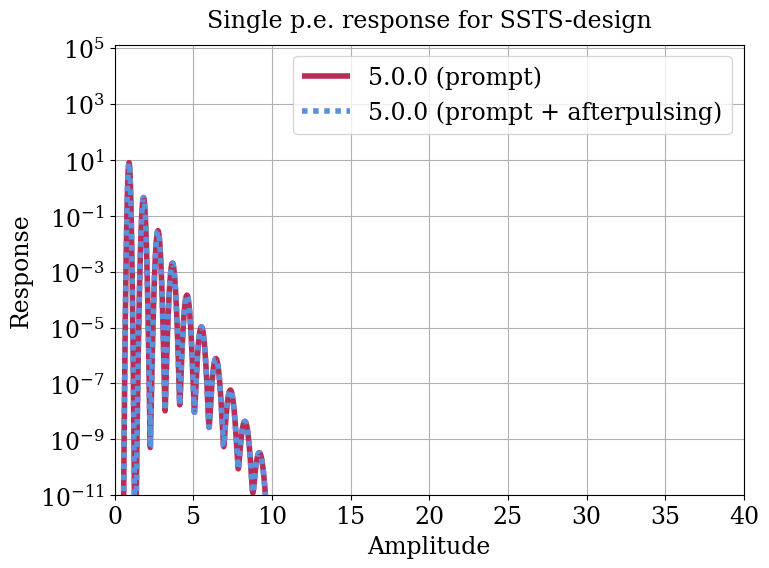

# Common Single Photo Electron spectrum for SST
# Produced by C. Alispach, T. Armstrong, J. Watson, 02/10/2018
# Original shifting of x axis to get mean of distribution 1 p.e
# fixed to a multiplication instead: x_n = (x1+0.087)*0.920,
# actually using spe_norm after adding the 0.087 (KB 2018-10-04),
# resulting in equidistant peak positions.
# Parameters :
#  - Optical crosstalk : 0.08 (agreed upon common value)
#  - SiPM gain smearing : 0.0504869 (in units of p.e., provided by SST-1M, LVR3)
# The unit in abscissa is in number of photo electron
# SiPM formula from Gentile 2010, see following paper
#  - http://adsabs.harvard.edu/abs/2010arXiv1006.3263G
# Note that the Prompt and Prompt x AP columns are the same
#
# Ampl.         Prompt          (Prompt x AP)
#------         --------        ---------------
#-0.063888       2.8504e-97      2.8504e-97
#-0.054218       2.2949e-95      2.2949e-95
#-0.044549       1.7692e-93      1.7692e-93
#-0.034880       1.3061e-91      1.3061e-91
#-0.025211       9.2334e-90      9.2334e-90
#-0.015541       6.2505e-88      6.2505e-88
#-0.005872       4.0518e-86      4.0518e-86
0.003797        2.5152e-84      2.5152e-84
0.013467        1.495e-82       1.495e-82
0.023136        8.5099e-81      8.5099e-81
0.032805        4.6384e-79      4.6384e-79
0.042474        2.421e-77       2.421e-77
0.052144        1.21e-75        1.21e-75
0.061813        5.7912e-74      5.7912e-74
