Pulse_template_nectarCam_17042020-noshift#

The full file can be found in the Simulation Model repository here.

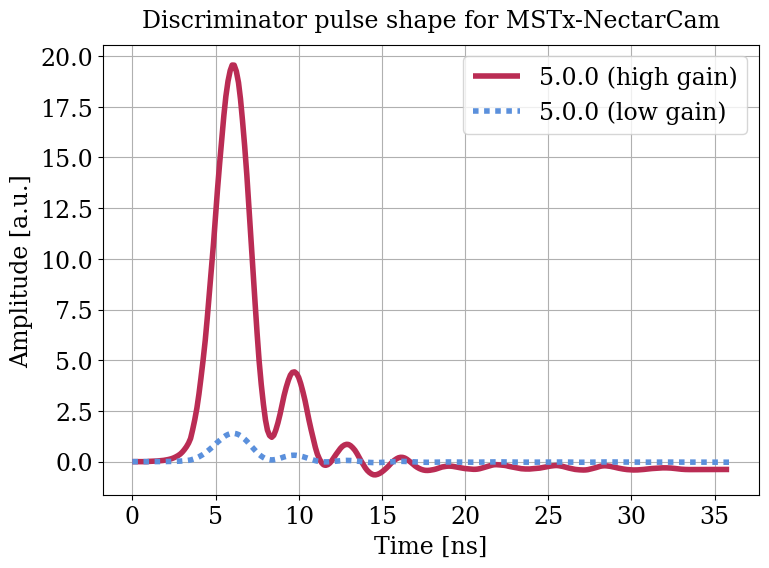

Parameter plot.

The first 30 lines of the file are:

# NectarCam single-p.e. pulse shape (HG and LG).
# Table provided by Thomas Armstrong 2020-04-17.
# Peak position is about 25 ns earlier than in previous pulse shapes.
#
# T     HG      LG
#[ns]   [arb.]  [arb.]
#
0.00 0.000000 0.000000
0.12 0.000000 0.000000
0.25 0.000000 0.000000
0.38 0.000000 0.000000
0.50 0.000000 0.000000
0.62 0.000000 0.000000
0.75 0.000000 0.000000
0.88 0.000000 0.000000
1.00 0.013230 0.000945
1.12 0.016520 0.001180
1.25 0.020660 0.001476
1.38 0.025830 0.001845
1.50 0.032290 0.002306
1.62 0.040350 0.002882
1.75 0.050440 0.003603
1.88 0.063050 0.004504
2.00 0.078810 0.005630
2.12 0.098520 0.007037
2.25 0.123150 0.008797
2.38 0.153940 0.010996
2.50 0.192430 0.013745
2.62 0.240530 0.017181
2.75 0.300670 0.021476
