CTA-MST_lightguide_FC_weighted_average#

The full file can be found in the Simulation Model repository here.

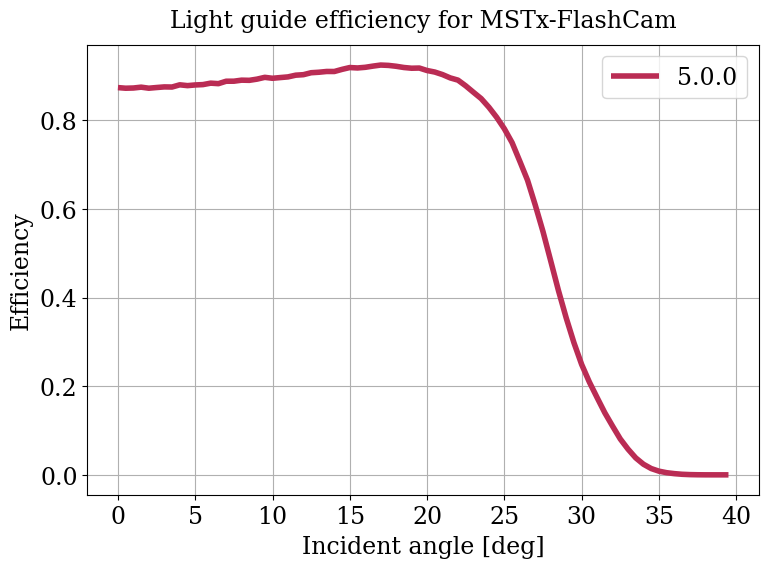

Parameter plot.

The first 30 lines of the file are:

# MST-FC lightguide efficiency versus off-axis angle.
# Based on WeightedAverage.dat provided by S. Puerckhauer 2019-02-07,
# the average of calculations at 12 different pixel orientations,
# for 355 nm wavelength.
# Because the efficiency at other wavelengths is marginally lower,
# the original data was scaled by a factor 0.995 (KB, 2019-02-21).
#
 0.0   0.873817
 0.5   0.872415
 1.0   0.872879
 1.5   0.874795
 2.0   0.872437
 2.5   0.873977
 3.0   0.875375
 3.5   0.875103
 4.0   0.880074
 4.5   0.878265
 5.0   0.879782
 5.5   0.880583
 6.0   0.883837
 6.5   0.882715
 7.0   0.888171
 7.5   0.888244
 8.0   0.890580
 8.5   0.890205
 9.0   0.892929
 9.5   0.896952
10.0   0.894857
10.5   0.896432
11.0   0.897951
