CTA-LST_lightguide_eff_2020-04-12_average

The full file can be found in the Simulation Model repository here.

The first 30 lines of the file are:

#

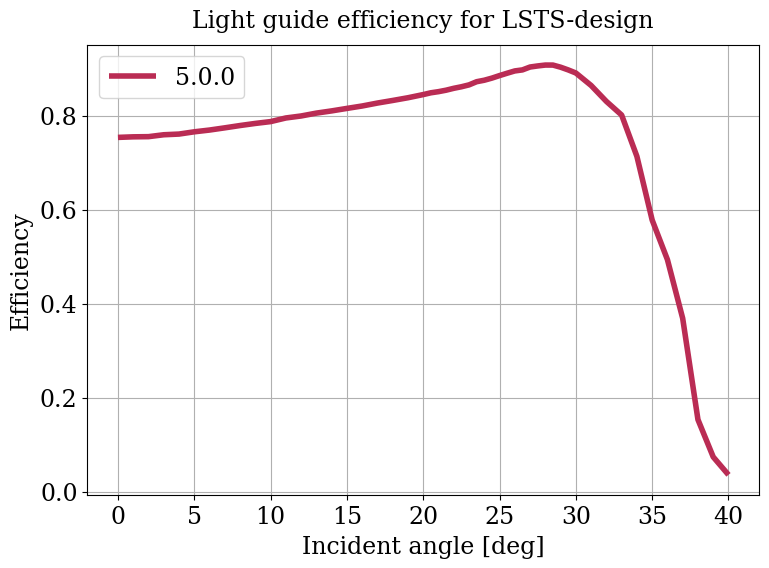

# Lightguide efficiency for LST1.
# Provided by Yusuke Suda on 12/04/2020 for 9 wavelengths and from -40 degrees to 40 degrees.
# The wavelength dependence was averaged over, weighting by the Cherenkov spectrum on the ground.
# An average was also taken between the [-40, 0] and [0, 40] angular ranges
# to obtain the one sided efficiency below.
#
# Angle [deg], Efficiency
0 0.753495
1 0.754693
2 0.755073
3 0.759104
4 0.760575
5 0.765372
6 0.769134
7 0.773828
8 0.778742
9 0.783217
10 0.787095
11 0.794814
12 0.799069
13 0.805158
14 0.809865
15 0.815164
16 0.820312
17 0.82656
18 0.832076
19 0.837863
20 0.844608
20.5 0.848405
