Aclylite8_tra_v2013ref#

The full file can be found in the Simulation Model repository here.

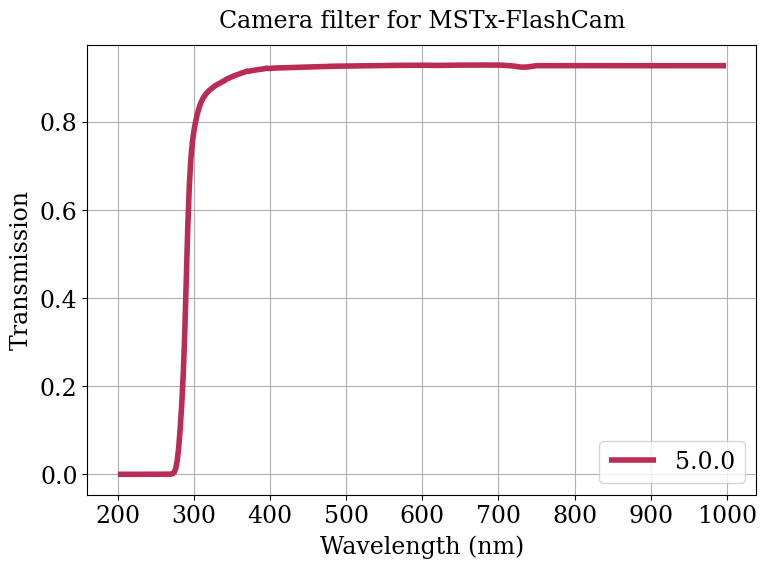

Parameter plot.

The first 30 lines of the file are:

# Camera window transmission curve: Aclylite8_tra_v2013ref.txt
# Provided by Masaaki. Thickness? Coating?
# WL(nm) transmission
200	              0
250	        0.00019
252	        0.00019
254	         0.0002
256	        0.00021
258	        0.00022
260	        0.00023
262	        0.00025
264	        0.00027
266	        0.00029
268	        0.00035
270	        0.00058
272	        0.00148
274	        0.00449
276	        0.01268
278	        0.03051
280	        0.06148
282	        0.10543
284	        0.15971
286	        0.22851
288	        0.32532
290	        0.44761
292	        0.56659
294	        0.65726
296	        0.71673
298	        0.75427
300	        0.77957
